Highway / Outdoors 4G SOS Emergency Call Telephone Pillar
Emergency Telephone Pillar, painted for outdoor use. Can choose to add LED lights Mechanical characteristics: Sleek and harmonious design free of sharp edges, prepared for the containment of auxiliary circuits Material: Made of galvanized steel, It can be manufactured in stainless steel Colour: Custom black, Standard shipment is red (other colour on demand) Fixing: on floor
Description
Highway / Outdoors 4G SOS Emergency Call Telephone Pillar
The J&R emergency roadside phone is designed for outdoor use. The phone shell is an aluminum alloy with a UV-resistant powder coating, which enhances the phone's resistance to vandalism and ensures that the phone's main communication functions remain in normal use at all times.
The telephone is an off-hook automatic dial phone, Users only need to pick up the handset, and the phone will automatically connect to the assistance center or related departments. It avoids the situation where the user does not know what number to dial in an emergency.
Additionally, the J&R telephone can be controlled and managed from a central location, thereby ensuring cost effective maintenance and improved up-time.
Emergency Telephone Pillar, painted for outdoor use. Can choose to add LED lights
Mechanical characteristics: Sleek and harmonious design free of sharp edges, prepared for the containment of auxiliary circuits
Material: Made of galvanized steel, It can be manufactured in stainless steel
Colour: Custom black, Standard shipment is red (other colour on demand)
Fixing: on floor
MAIN FEATURES
- There are 3 options for the connecting (Analogue, SIP, 3G / 4G)
- Programmable for speed-dialing (PPT)
- Weather protection IP67
- Can be programmed remotely
- Telephone line powered for analogue phone
- Additional power supply required for VoIP or GSM type
- The material of the tower is cold rolled steel with powder coated body
- Vandal-resistant structure and coating designed to resist extreme weather conditions
- A variety of signage, graphics and colors choices are available
- CE, FCC, RoHS, ISO9001 Compliant
TECHNICAL PARAMETERS
Highway / Outdoors 4G SOS Emergency Call Telephone Pillar
| 4G Version | |
| Power Supply | 12V DC |
| Power Consumption | -Idle: 0.3W -Active: 1.5W |
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| A version: | - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| EC25-E | - LTE-FDD: B1/B3/B5/B7/B8/B20 - LTE-TDD: B38/B40/B41 - WCDMA: B1/B5/B8 - GSM/EDGE: B3/B8 |
| EC25-J | - LTE-FDD: B1/B3/B8/B18/B19/B26 - LTE-TDD: B41 - WCDMA: B1/B6/B8/B19 |
| EC25-A | - LTE-FDD: B2/B4/B12 - WCDMA: B2/B4/B5 |
| EC25-AFX | - LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71 - WCDMA: B2/B4/B5 |
EC25-MX | - LTE-FDD: B2/B4/B5/B7/B28/B66 - WCDMA: B2/B4/B5 |
| EC25-AU | - LTE-FDD: B1/B3/B4/B5/B7/B8/B28 - LTE-TDD: B40 - WCDMA: B1/B2/B5/B8 |
| Package | |

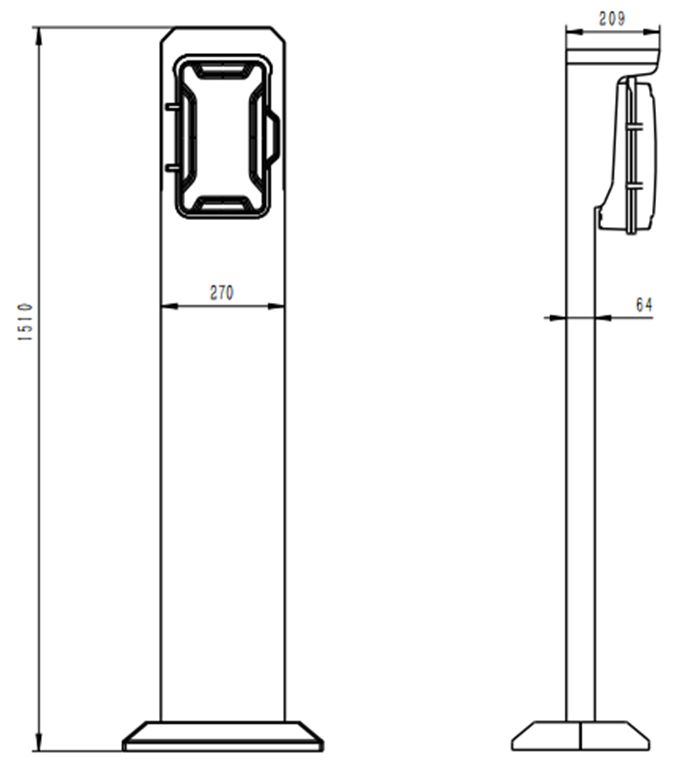

| Unit size: | 1510 *270 *210 (mm) |
| Packaging materials | Pearl cotton, Wooden Box |
| Weight: | 30 KG |
| Ambient conditions | |
| Protection type | IP 67 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
J&R Emergency Telephone Pillar are Installed Beside British Motorways
They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.
