Explosion-proof Telephone
Product Description Explosion-proof Keypad Telephones with Display Screen JREX106-SIP are designed to provide safe, reliable communication in hazardous areas. The telephone sets were developed for operation in the petrochemical industry, Obtained ATEX, IECEx, EAC, INMETRO certificate
Description
Product Description

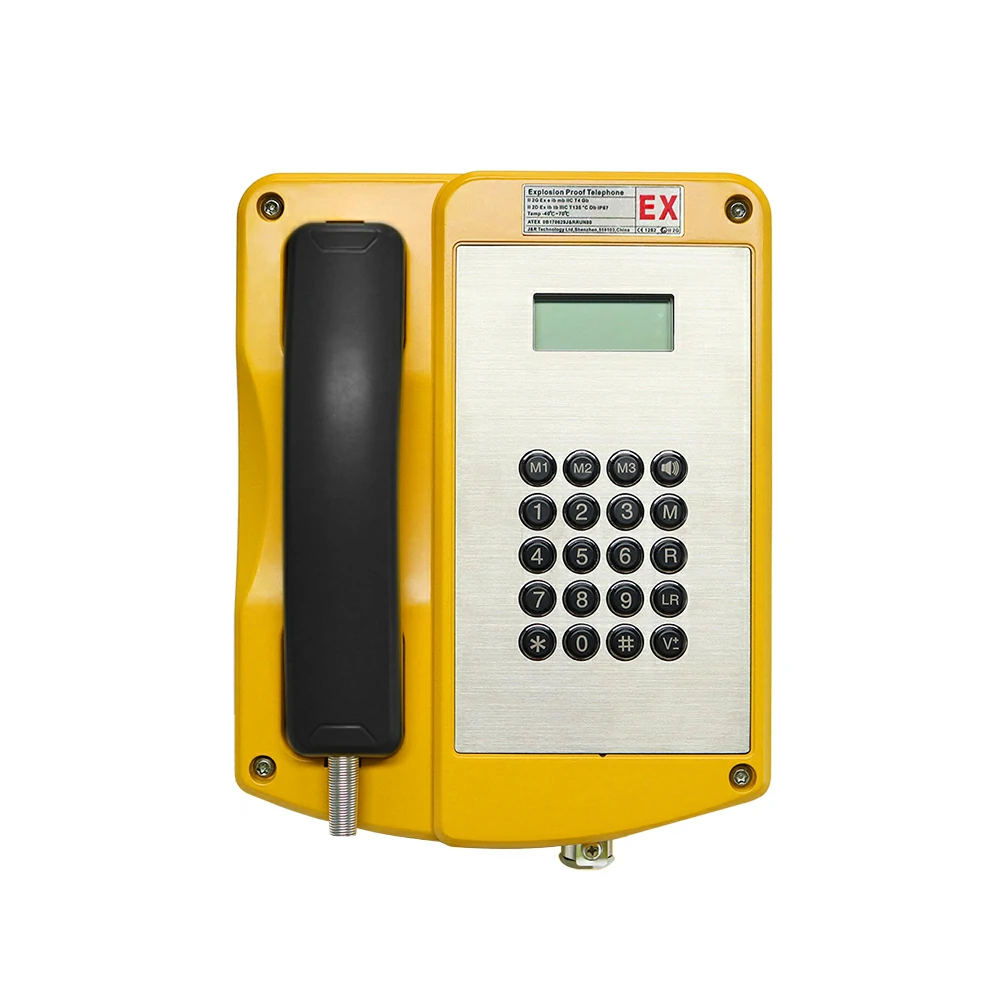

Explosion-proof Keypad Telephone with Display Screen
JREX106-SIP is designed to provide safe, reliable communication in hazardous areas.
The telephone sets were developed for operation in the petrochemical industry, usually used in the production, transportation, and refining of oil, natural gas, coal, etc.
The housing is made of impact and shock-resistant GRP and is even resistant to acids, alkali,s, and lubricants.
| Casing Material | High Impact Glass fiber-reinforced polyester |
| Colors | yellow, other colors to special order |
| Handset Material | Impact Thermoset Resin Compound |
| Keypad | 20-piece stainless steel keypad |
| Temperature | Operating: -45°C to +70°C Storing: -45°C to +75°C |
| Weather Resistance | IP66 |
| Ringing Tone | Shrill warble tone 95 dBA at 1 metre typical |
| Explosion Protection | II 2G Ex e ib [ib] mb IIC T4 Gb II 2D Ex ib [ib] tb IIIC T135 °Db -40 °C ≤ Ta ≤ +60 °C/+40°C Zone 1, 2, 22 |
| Relative humidity | Up to 95%(non-condensing) |
| M.T.B.F. | Calculated to have an M.T.B.F. over 50,000 hours using |
| Hook Switch Life | >1 000 000 Operations |
Technical Specification
Explosion-proof Keypad Telephone with Display Screen
| Analogue Version | |
| Power Supply | Line powered i.e. drawn from the telephone line. It doesn't require any external AC Supply. |
| Supply Voltage | 24 VDC to 66 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | Max. approx.90dB(A) in 1 m distance |
| Lightning / Transients | Protection to ITU-T k .21 enhanced levels |
| SIP Version | |
| Power Supply | Power over Ethernet according to IEEE 802.3af over spare cable pair or external supply, 12V DC |
| Power Consumption(PoE) | 2.5 W |
| SIP Protocol | SIP ( RFC 3261 Compliant ) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | 95dB(A)in 1m distance |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -40˚ to +70˚C (-22˚F to +140˚F) |
| Storage Temperature | -45℃ to +70℃ (-22°F to 158°F) |
| Display temperature | -10 °C / +55 °C |
Features
Explosion-proof Keypad Telephone with Display Screen
★ Noise-canceling microphone
★ Magnetic reed hook switch to reduce parts subject to wear
★ Hearing-aid compatible (HAC) receiver
★ High-impact thermoset resin industrial housing and ergonomic heavy-duty
★ Corrosion-resistant hardware
★ Large urethane-coated watertight metal keypad
Packing & Delivery
Explosion-proof Keypad Telephone with Display Screen
| Unit Size | 302 *240 *129(mm) |
| Carton Size | 405 *280 *170 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 6.5 KG |
| Gross Weight | 7.5 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) | Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Our Services
Explosion-proof Keypad Telephone with Display Screen
✬ ODM & OEM products or solutions
✬ Sample order is greatly welcomed
✬ Update the productive process and show the packing details
✬ After delivering the goods, we will track the products for you once every two days, until you get the products.
✬ When you get the products, if there are any further questions, welcome to contact us and we will solve the problems for you in time.
Our Company
Explosion-proof Keypad Telephone with Display Screen
J&R is a China-based designer and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All Of Our Phone Model Avaliable in analog Version, IP/SIP Version, and GSM/2G/4G Version)
After well study of your information, we sincerely hope to enter into a partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solutions to meet your demands and requirements well.
