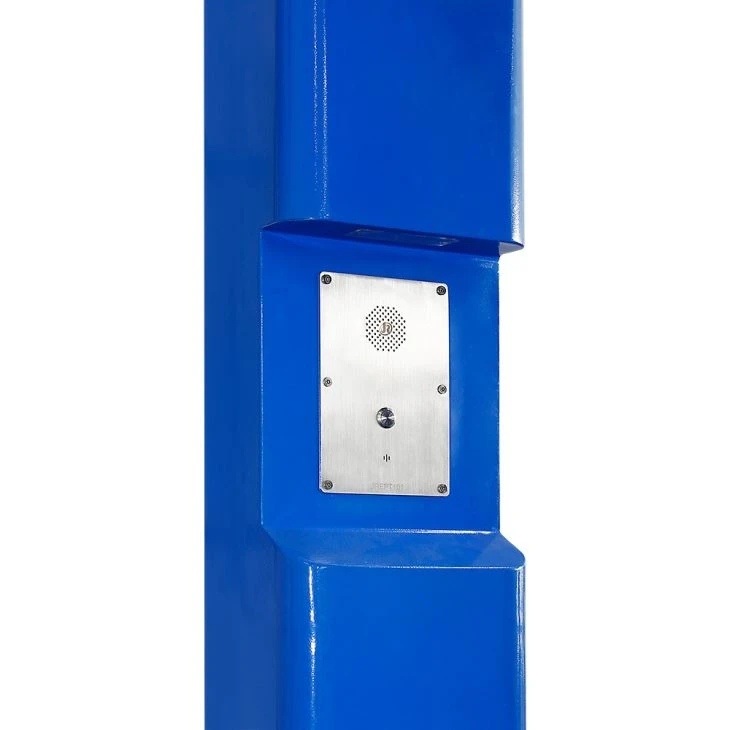

Cordless Landline Emergency Call Pillar With Blue LED Lamp For Outdoor
Cordless Landline Emergency Call Pillar With Blue LED Lamp For Outdoor
Cordless Landline Emergency Call Pillar With Blue LED Lamp For Outdoor
Cordless Landline Emergency Call Pillar With Blue LED Lamp For Outdoor
Cordless Landline Emergency Call Pillar With Blue LED Lamp For Outdoor
Cordless Landline Emergency Call Pillar With Blue LED Lamp For Outdoor
Vandal-resistant Emergency Telephone Tower With Blue LED Lamp For Outdoor
Color:Blue or Customized
Material:cold rolled steel
Certificate:FCC, RoHs, CE, ISO9001
Size:300*340*2703(mm)
Installation:Pillar/Column
Ingress Protection Rating: IP65
Warranty:2 Years
Function:SOS
Feature:Hotline
Description
⌘ Product Description
Vandal-resistant Emergency Telephone Tower With Blue LED Lamp For Outdoor
The Blue Light Emergency Phone Tower, is based on a cold rolled steel with powder coated body, and stainless faceplate, offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Casing Material | cold rolled steel |
Telephone Versions | Analogue,SIP,GSM,3G,4G Optional |
Weather Resistance | IP65 |
Power Supply | telephone line or DC or solar powered |
Temperature | Operating: -30°C to +65°C Storing: -40°C to +75°C |
Ringing Tone | Shrill warble tone 80 dBA at 1 metre typical |
| M.T.B.F. | excess of 50,000 hours using |
⌘ Technical Specification
Vandal-resistant Emergency Telephone Tower With Blue LED Lamp For Outdoor
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version | |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer volume | - 90~95dB(A) at a distance of 1 m |
Ambient conditions | |
Protection type | IP 66 as per EN60529 |
Operating temperature | -30°C to +65°C |
Storage temperature | -40°C to +75°C |
⌘ Features
Vandal-resistant Emergency Telephone Tower With Blue LED Lamp For Outdoor
⦿ Fast-fit terminal connection
⦿ Weather proof protection to IP65
⦿ Vandal-proof cold rolled steel body with stainless steel face plate
⦿ Attention-getting LED Blue Light is included and mounted atop the unit
⌘ Packing & Delivery
Vandal-resistant Emergency Telephone Tower With Blue LED Lamp For Outdoor
Unit size | 340*300*2703 (mm) |
Carton size | 370 *330 *2900 (mm) |
Packaging materials | Pearl cotton, Woonden box |
Net weight | 130 KG |
Gross weight | 150 KG |
Port | Shenzhen, Guangdong, China | ||||
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) | Quantity(Sets) | 1-10 | 11-50 | 51-200 | >200 |
Est.Time(Days) | 2 | 10 | 20 | To be negotiated | |
⌘ Cooperation Partners
Vandal-resistant Emergency Telephone Tower With Blue LED Lamp For Outdoor
As a reliable supplier of different kinds of industrial telephones, we have been sharing the equipments and systems with different customers and users all over the world.
The professional service and excellent quality made us enjoy the reputation over more than 80 countries, including USA, China, Thailand, Malaysia, Turkey, Israel, Greece, Spain, France, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile etc.
⌘ Our Company
Vandal-resistant Emergency Telephone Tower With Blue LED Lamp For Outdoor
J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories.
Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.
⌘ FAQ
Vandal-resistant Emergency Telephone Tower With Blue LED Lamp For Outdoor
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What do IP Ratings mean?
A: IP Ratings apply to enclosures such as our telephone cabinets. They indicate how the enclosure protects against water and dust ingress, the higher the better.
Q: How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
