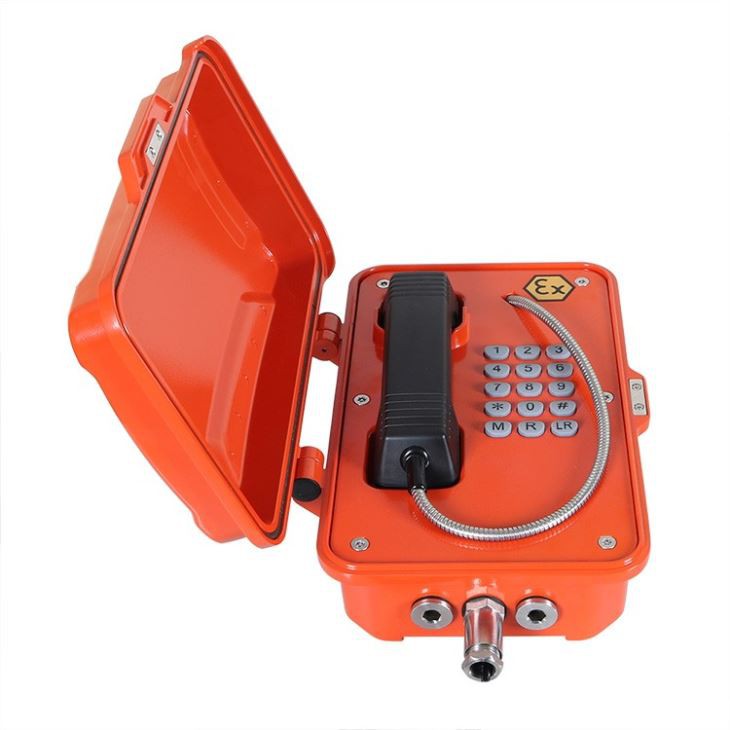

Explosion-proof VoIP Phone
This VoIP Explosion Proof Industrial Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, corrosive atmosphere, explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.
Description
Product Description
Explosion-proof VoIP Phone
J&R explosion-proof telephone series with corrosion-resistant, vandal proof cast aluminum waterproof case and magnetic induced door cover, which can completely prevent dust and moisture entering the telephone in order to prolong the life cycle and the reliability and stability of the telephone.
Explosion-proof VoIP Phone is suitable for installation in high dust, humidity, noise and outdoor areas.
Explosion Protection | II 2G Ex e ib [ib] mb IIC T4 Gb |
| Colors | Available in four colors: Orange,Yellow,Red and Blue |
| Handset | With Noise canceling microphone,for effective communication from noisy areas(Armored SS cord stands up to rough treatment,optional for black curly cord ) |
| Keypad | Weather resistant full Keypad, No.of keys(TOTAL15KEYS):0-9,*,#,Redial,Mute,Last Number Redial |
| Temperature Classification | T4 |
| Weather Resistance | IP66 - IP67 |
| Ringing Tone | Built-in External Ringer that provides penetrating calling signal(85dbA@1meter) |
| Hook switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using Relative humidity:Up to 95% (non-condensing) |
| Weight | Up to 8 kg depending on option |
Technical Specification
Explosion-proof VoIP Phone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Features
Explosion-proof VoIP Phone
★ Aluminium alloy die-casting body
★ Vandal resistant handset and cord
★ VOIP/SIP Version
★ Power-Over-Ethernet (PoE) as standard
★ Waterproof Fully Keypad
★ Inductive coupler fitted as standard for hard of hearing
★ ATEX,CE,FCC,RoSH compliant
Applications
Explosion-proof VoIP Phone
The Explosion-proof and Weatherproof Telephones are designed for use by the chemical plant, coal mine, power stations, the armed services and heavy industry which require very reliable and explosion protection telephony under adverse conditions.
▼J&R Underground Pipe Gallery Project in Nanning, China
▲J&R Underground Mine project in Colombia
Packing & Delivery
Explosion-proof VoIP Phone
| Unit Size | 204 *334 *126(mm) |
| Carton Size | 200 *300 *440 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 8 KG |
| Gross Weight | 8.8 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) | Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Our Services
Explosion-proof VoIP Phone
✬ ODM & OEM products or solutions (Custom service is a major feature of J&R. We will try our best to meet needs. )
✬ Sample order is greatly welcomed (If this is your first time cooperation with J&R, we welcome you to order sample on trial.)
✬ We will reply your inquiry within 12 hours
✬ Update the productive process and show the packing details
✬ After shipping, we will follow the product every two days for you until you receive the product.
✬ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
Our Company
Explosion-proof VoIP Phone
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
FAQ
Explosion-proof VoIP Phone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
Hot Tags: explosion-proof voip phone, China, manufacturers, suppliers, factory, company, brands, buy, best, high-quality, products
Send Inquiry
You Might Also Like
-
ATEX And IECEx Zone 1 & 2, Touch-Tone Explosion Proo...
-
IECEX Approved Analogue Explosion Proof Telephones, ...
-
Explosion Proof Broadcasting Telephone For Industry ...
-
Analogue Explosion-proof Telephone JREX106-A03
-

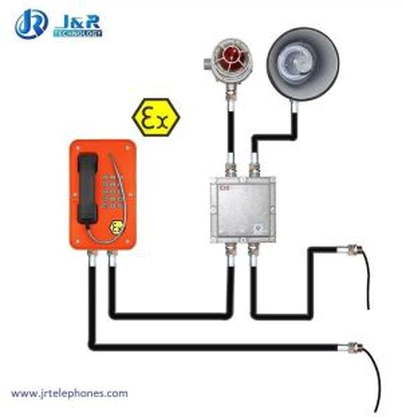

Anti-explosion Telephone With Flasher&Loudspeaker JR...
-

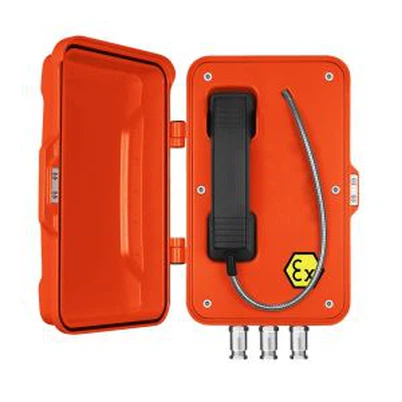

IP67 Auto-dial Explosion-proof VoIP Telephone
