IP Security Call Button Mini Video Intercom K86 Series
The K86 IP Video Intercom adopts a standard 86-type form factor with a sleek and compact design. Compatible with conventional 86 wall boxes, it offers convenient installation and is ideal for indoor intelligent communication deployments.
Description
J&R Technology is one of the leading China ip security call button mini video intercom k86 series manufacturers and suppliers with one of the famous brands, we also have our own factory, we are a professional company and can offer you best ip security call button mini video intercom k86 series products. Welcome to buy high-quality products from us.
IP Video Intercom Terminal
FUCTIONS
 |
The K86C video intercom terminal, with its compact ABS housing, offers powerful features such as one-touch door release, two-way audio communication, and broadcast notifications, catering to various needs with high cost-effectiveness. It supports wall mounting, has an IP54 protection rating, and is suitable for indoor use, providing reliable communication services
Standard SIP telephone
Simple installation and configuration
Noise-canceling microphone
Built-in 2W speaker
Hands-free and full-duplex, HD audio
CE, FCC, RoHS, ISO9001 standards

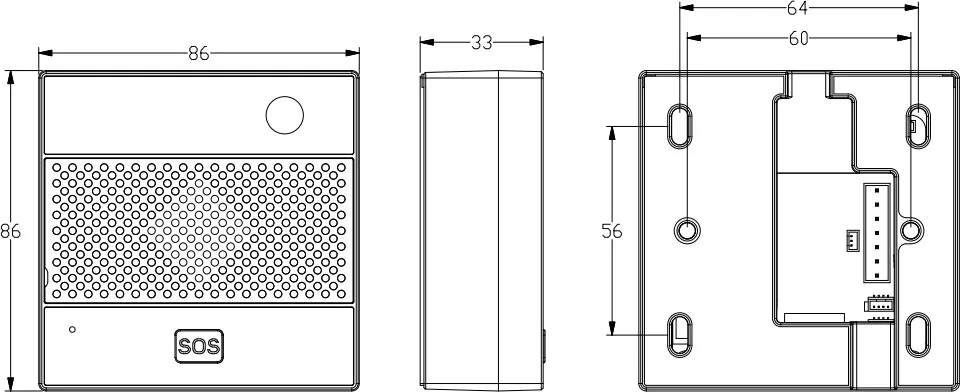

Dimensions: 86*86*33mm, carton packing
HD camera with H.264 code
(K86-C) One speed-dial button with LED indicator (illuminated during calls)
(K86-2C) Two speed-dial buttons with LED indicator (illuminated during calls)
Protection level IP54
Designed with a standard 86-size form factor, compatible with standard 86-type flush and surface-mounted electrical boxes, ensuring strong versatility
|
SIP Specifications |
|
|
Power supply |
PoE powered |
|
Power consumption |
Idle 1W / Working 2.4W |
|
SIP protocol |
SIP 2.0 (RFC3261) |
|
Network port parameters |
WAN Port: 10/100Base- T RJ-45 for LAN, Auto MDIX |
|
Voice codecs |
G.711 a / u,G.722 8000/16000,G.723,G.729,G.726 |
|
Communication mode |
Full duplex |
|
Ringing volume |
90 dB (A) @ 1 meter |
|
Technical Specifications |
|
|
Compatible with most SIP-based IP-PBX servers that comply with SIP RFC 3261 |
|
|
PoE 802.3af enabled (Power-over-Ethernet) or external power supply |
|
|
Supports automatic switching between primary and backup servers |
|
|
Supports remote Telnet debugging |
|
|
Supports two relays to remotely control external devices |
|
|
Operating temperature -40˚C to 65˚C |
|
|
Storage temperature -40°C to 75°C |
|
|
M.T.B.F. exceeds 50,000 hours under normal operating conditions |
|
|
Network Web Management |
|
|
Fully configurable through any internet browser |
|
|
Static IP address provisioning or DHCP support |
|
|
Product self-diagnostic testing available through the web interface |
|
|
Network-adjustable earpiece volume and microphone sensitivity |
|
|
Firmware upload via web interface |
|
|
Echo cancellation: Supports G.168, and hands-free can support 96ms |
|
|
Supports SIP domain, SIP authentication (none, basic, MD5), and DNS name of server |
|
|
DTMF: SIPINFO, INBAND, RFC2833 |
|
|
Network Features |
|
|
Automatically broadcasts IP address after successful network connection |
|
|
Supports web interface backend, the intercom can be configured through webpage |
|
|
Data Protocols: IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, ONVIF, SNMPv1, RTCP-XR, 802.1x, Static IP/DHCP IP Assignment,IEEE 802.1p/Q, QoS/ToS, HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN Configuration, LDAP |
|
|
Camera Specifications |
|
|
The most effective pixel |
1920 (H) *1080 (V) |
|
Lens specifications size |
1/4, aperture: F2.5, Focus: 2.5mm, FOV: 80 degrees |
|
Power supply and interface |
USB BUS powered |
Typical Applications

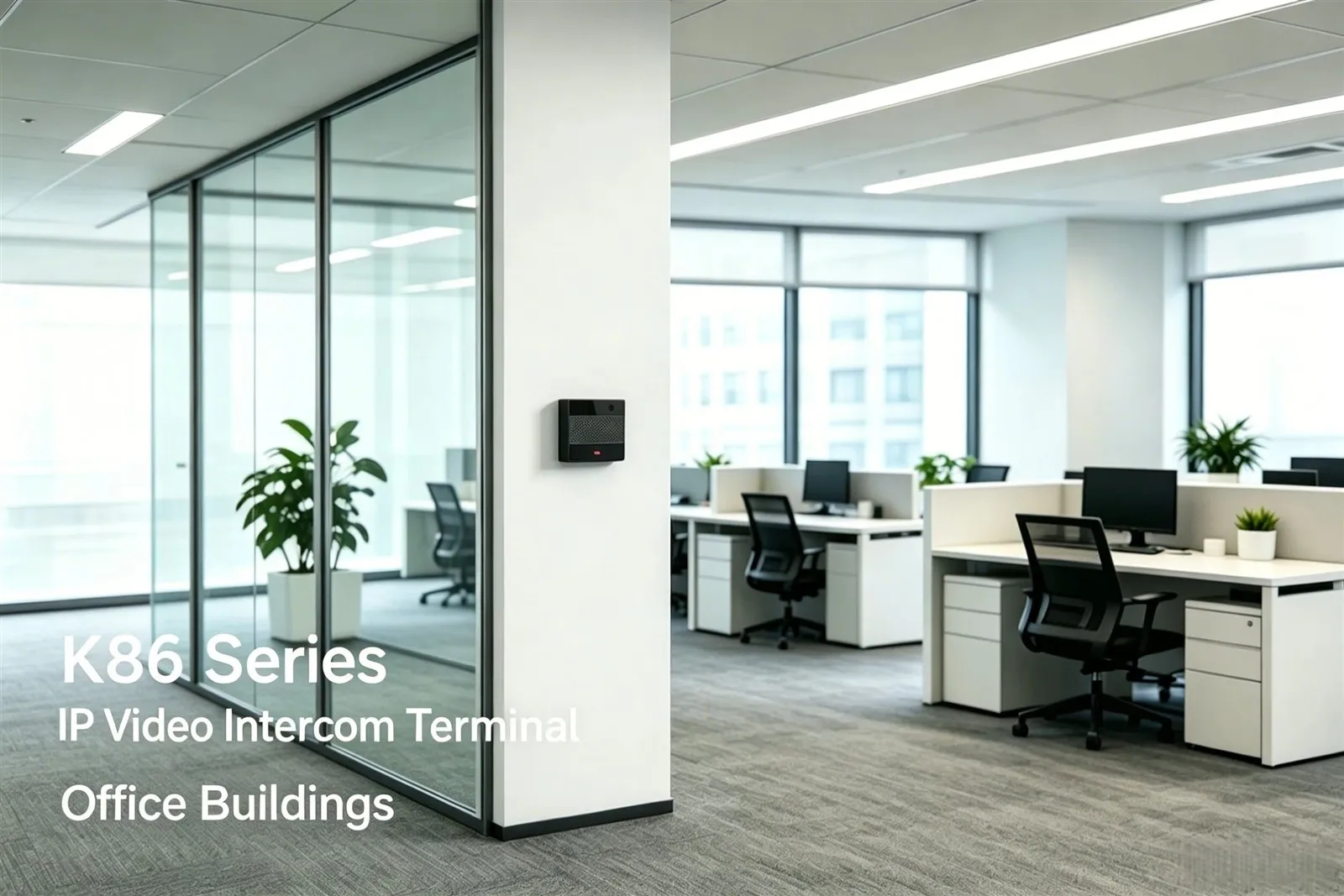

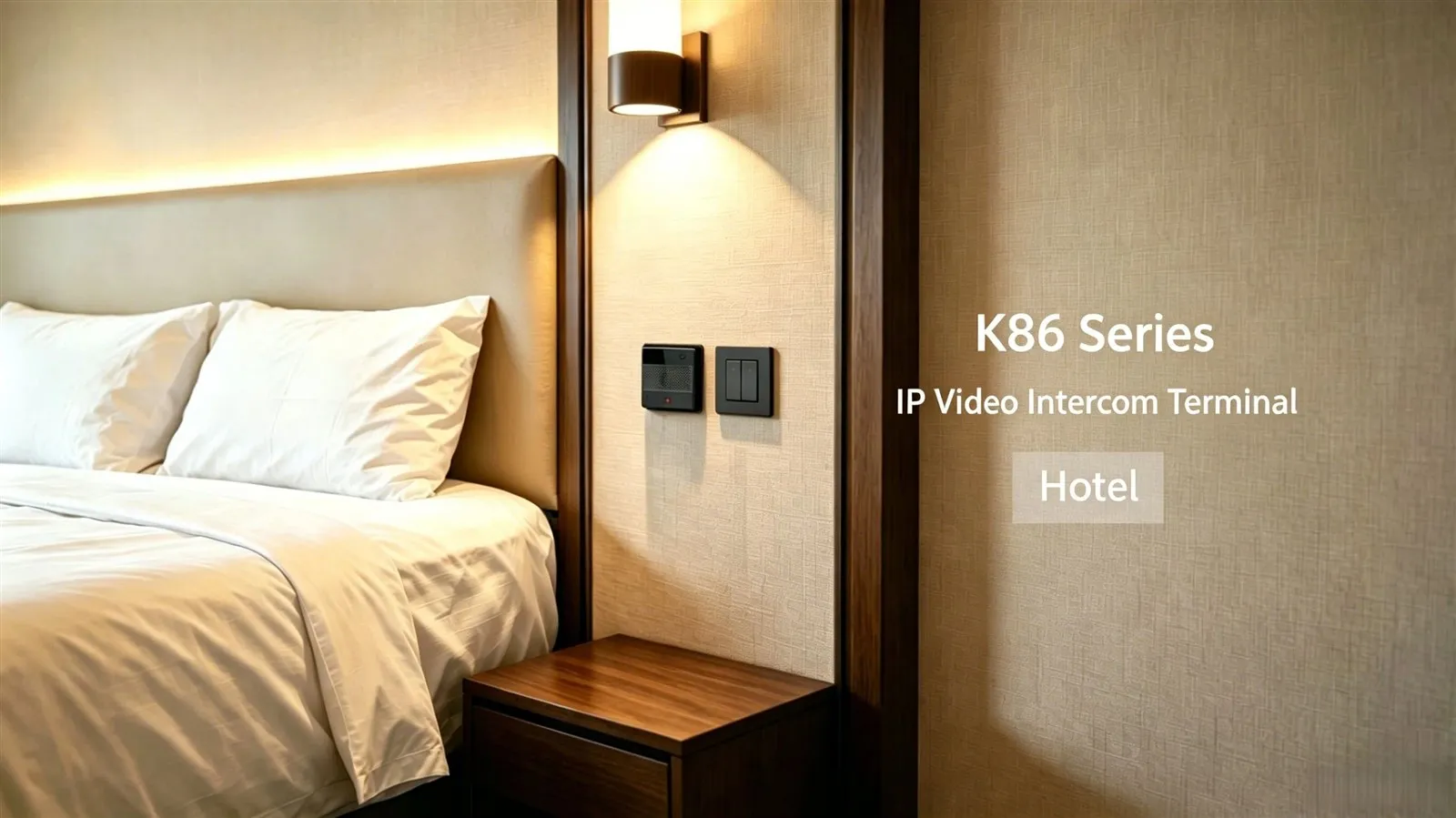

Residential access control systems, office buildings, cleanrooms, smart campuses, commercial facilities, and indoor public areas.
Smarter Connectivity, Greater Reliability
Built on the standard SIP protocol, the K20 Series offers flexible deployment and seamless integration with existing communication and security infrastructures. Features such as remote management, web-based configuration, backup server support, and multi-protocol compatibility help simplify system operation and maintenance.
Designed for demanding environments, the K20 Series delivers clear video communication and dependable performance across industrial sites, transportation hubs, public facilities, and smart building applications.
