Weatherproof Ringdown Telephone With Loudspeaker JR103-CB-H
This Weatherproof ringdown telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. With metal loudspeaker, it can broadcast remotely for notification. The horn works after 1-9 rings (adjustable), shut when handset lifted or call finished.
Description
Model Number:JR103-CB-H
This Weatherproof ringdown telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
With metal loudspeaker, it can broadcast remotely for notification. The horn works after 1-9 rings (adjustable), shut when handset lifted or call finished.
APPLICATIONS of Weatherproof Ringdown Telephone with Loudspeaker

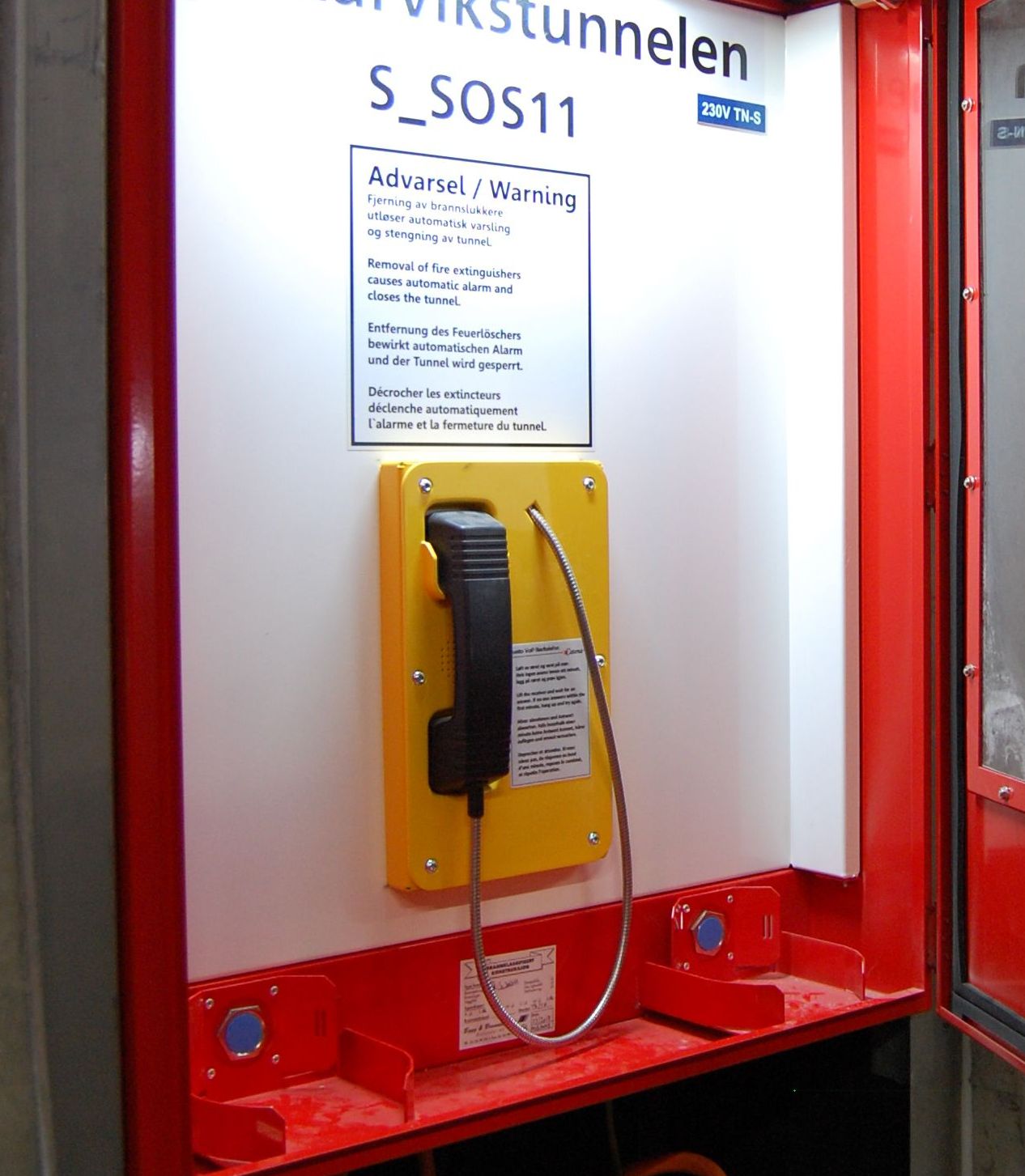

This Weatherproof Heavy duty industrial telephone is Very Popular For Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highwayside, Hotels, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.
MAIN FEATURES of Weatherproof Ringdown Telephone with Loudspeaker
-Standard Analogue phone or SIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP66-IP67
- Programmable for auto-dial
- Wall/Pillar mounting, simple installation
- The phone will ringing loudly when there is a incoming call.
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analogue)
- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
- Built-in amplifier, with external ringer :15W (30W optional), for broadcasting feature
- CE, FCC, RoHS, ISO9001 compliant
TECHNICAL SPECIFICATIONS of Weatherproof Ringdown Telephone with Loudspeaker
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer volume | - 90~95dB(A) at a distance of 1 m |
Protection type | IP 66 as per EN60529 |
Operating temperature | -40°C to +70°C |
Storage temperature | -45°C to +85°C |
CERTIFICATIONS
OUR SERVICE
1. ODM & OEM products or solutions
2. Sample order is greatly welcomed.
3. We will reply your inquiry within 12 hours
4. Update the productive process and show the packing details
5. After delivered the goods, we will track the products for you once every two days, until you get the products. When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
PACKAGE of Weatherproof Heavy duty industrial telephone

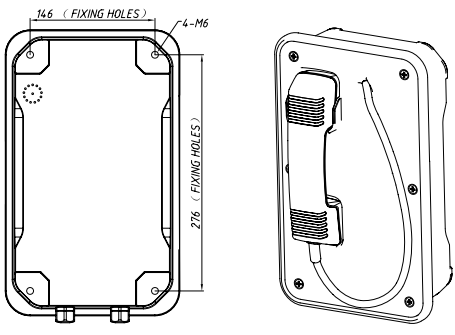

Unit size: 204 *334 *109 (mm)
Carton size: 200 *300 *440 (mm)
Packaging materials: pearl cotton, carton
Gross weight: 8 KG
Net weight: 7 KG
