Outdoor POE Powered Telephone With 16 Keys JR207-FK-Analogue
Outdoor POE Powered Telephone With 16 Keys JR207-FK-Analogue
Outdoor POE Powered Telephone With 16 Keys JR207-FK-Analogue
Outdoor POE Powered Telephone With 16 Keys JR207-FK-Analogue
Outdoor POE Powered Telephone With 16 Keys JR207-FK-Analogue
Outdoor POE Powered Telephone With 16 Keys JR207-FK-Analogue
Material： Cold rolled steel body
Color： Color Optional
Handset Material： ABS material handset with stainless steel spiral cord

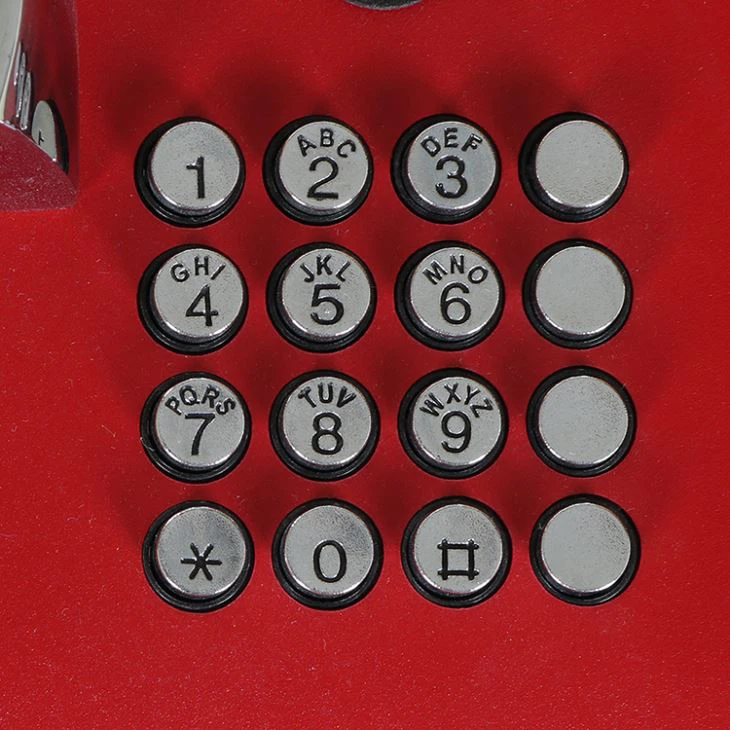

Keypad： Weather-sealed tactile digital keypad
Operating Temperature：-30°C to + 65°C
Weather Resistance：IP55
Ringing Tone： Shrill warble tone 80 dBA @ 1 metre typical
Hook switch： Electronic / magnetic with no visible moving parts
unit size：248 *195 *132(mm)
Packaging materials： pearl cotton, carton
Net weight：2.5KG
Gross weight：3.5KG
Description
Product Description
Outdoor POE Powered Telephone with 16 Keys
The Handest Telephone is designed to meet the needs of clients who experience loss through vandalism. Ideal for Railway applications, Marine applications, and Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jails, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside buildings, etc.
Housed in cold rolled steel boxes and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Extremely easy to install. The cable entrance is on the back of the phone to prevent artificial damage, while the keypad is weather and vandal-resistant.
Specification
Operating Temperatures | -30°C to + 65°C |
Relative humidity high | 93% R.H at 40°C (non condensing) |
Casing Material | Heavy Duty Aluminum (salt & corrosion-resistant) |
Illuminated LCD Display | for status notifications and instructions |
Flashing Light | ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc |
Excellent Sound Quality | STI approved to 0.9 (Excellent Sound) |
Ringing volume | 80 dB(A) in 1m distance |
Power Supply | 24V DC input, or Power over Ethernet (PoE) |
Connection | RJ45 Ethernet socket through IP67 plug connector |
Quality of Service (QoS) | ensuring optimal delivery of voice |
Type of Service (ToS) | high throughput and reliability (RFC3168) |
ISDN gateway compliance | connect any SIP-compliant VoIP/ISDN gateway to call to and receive calls from ISDN |
Inbuilt redundancy | able to make diversion calls to 2nd PBX |
TR069 (Technical Report 069) | for advanced status monitoring and control |
Configuration | web interface or server-based configuration file. Static IP address provisioning or DHCP. Mass configuration available |
Keypad Option | available without a keypad (autodial-on-handset-lift), used to initiate a PABX Hotline or wait for reply |
Remote Management | Available with remote management software, to simplify installation and cut maintenance costs |
Feature
Standard Analogue phone or VoIP phone
Robust housing, constructed of cold rolled steel with powder-coated
Vandal-resistant handset and armored cord
Full Rugged & durable keypad, easy to operate
Wall mounting, simple installation
Weatherproof protection from IP55 to IP65
Programmable for auto-dial
External Power supply or PoE SIP phone
Inductive coupler fitted as standard for hard of hearing, RJ45 connector
CE, FCC, RoHS compliant
Packing
Unit size: 248 *195 *132(mm)
Carton size:340*220*165(mm)
Packaging materials: pearl cotton, carton
Net weight: 3KG
Gross weight: 4KG
