Reliable Emergency Communication For Abu Dhabi’s Sewage Treatment Plant

Project Background:

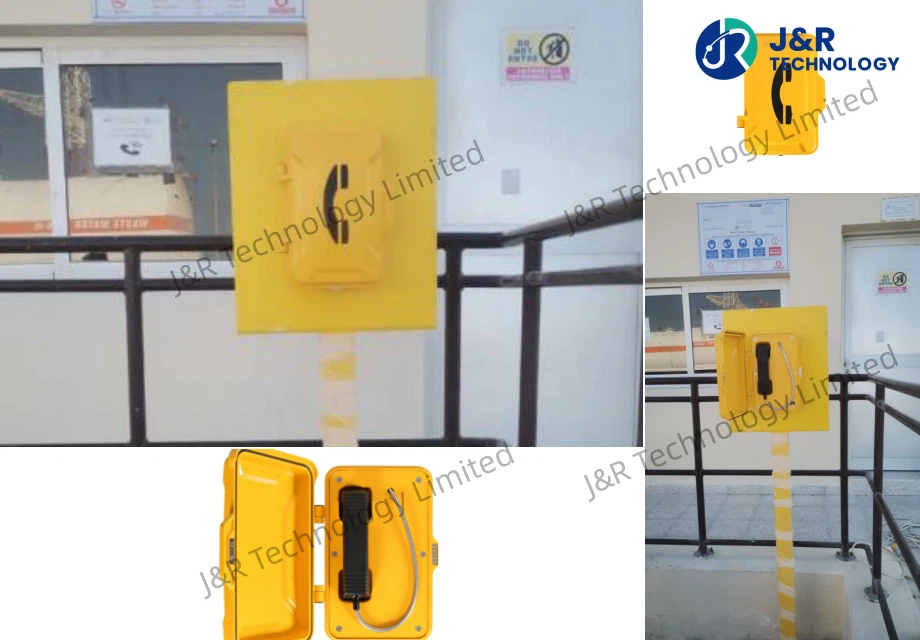

In the demanding environment of the Abu Dhabi Sewage Treatment Plant, where humidity, dust, corrosive gases, and extreme temperatures are daily challenges, reliable communication is not a luxury-it is a necessity. To ensure worker safety and operational continuity, the plant has deployed the JR101-CB-SIP emergency waterproof telephone, a ruggedized SIP-based VoIP solution engineered for the harshest industrial conditions.

Built for the Harshest Environments

The JR101-CB-SIP is not a standard telephone. It is a virtually indestructible communication device, featuring a die-cast aluminum alloy housing with a weatherproof enclosure and a durable polyurethane finish. This design withstands high humidity, dust, vibration, shock, saltwater exposure, and even vandalism-making it ideal for the corrosive and humid atmosphere of a sewage treatment facility.

Key Features for Critical Infrastructure

SIP Protocol Compliance (RFC3261): Fully compatible with most IP-PBX servers, ensuring seamless integration into the plant's existing IP network.

Flexible Power Options: Supports PoE (802.3af) or 12V DC power, simplifying installation in remote or power-limited areas.

Noise-Cancelling Handset: Equipped with a noise-cancelling microphone and a 42cm armored cord (optional heavy-duty curly cord), ensuring clear voice communication even near pumps and heavy machinery.

Hands-Free & High Ringing Volume: Produces 90–95 dB(A) ringing volume, audible above plant noise. Full-duplex communication with echo cancellation (G.168, 96ms) enables effective hands-free use.

Automatic Dialing & Sequential Calling: Supports hotline auto-dial upon lifting the handset, plus 4 groups of sequential calling-critical for emergency response.

Remote Control Capability: Two built-in relays allow remote activation of external devices such as strobe lights, sirens, or gate locks.

Extreme Temperature Tolerance: Operates reliably from -40°C to 65°C, with storage down to -75°C-perfect for Abu Dhabi's scorching summers and cool nights.

Web Management & Diagnostics

Every unit is fully configurable via any web browser, supporting DHCP or static IP, VLAN, QoS, and remote Telnet debugging. The web interface also offers self-diagnostic testing, firmware uploads, and adjustable earpiece volume/microphone sensitivity. Data protocols include IPv4, TCP/UDP, RTP/SRTP, ONVIF, SNMPv1, 802.1x, and more.

Easy Installation & Low Maintenance

With 3x M20 cable gland entry points, wall-mounting bar, and optional PoE, installation is straightforward. The magnetic reed hook switch eliminates wear-prone parts, and the unit's MTBF exceeds 50,000 hours under normal operation-reducing long-term maintenance costs.

Proven Applications

While ideal for sewage treatment plants, the JR101-CB-SIP is also deployed in offshore wind farms, chemical processing sites, power stations, underground tunnels, mining operations, and container cranes. Its versatility and toughness are field-proven.

Technical Specifications at a Glance

Network: 10/100Base-T RJ-45 (WAN + LAN), Auto MDIX

Codecs: G.711 A/U, G.722, G.723, G.729

DTMF: SIPINFO, INBAND, RFC2833

Power Consumption: Idle 1W / Working 2.4W

Weight: Net 6 kg, Gross 7 kg

Dimensions: 246×339×124 mm (unit)

Packaging: Foam padding, carton

Conclusion

For the Abu Dhabi Sewage Treatment Plant, the JR101-CB-SIP delivers uncompromising safety, durability, and performance. Whether for emergency calls, routine coordination, or remote equipment control, these telephones form the backbone of a resilient communication network-proving that even in the toughest environments, help is always just a handset away.
