Customized Analog Emergency Telephone For A Japanese University

A tailored communication solution is presented for a Japanese university environment: a vandal-resistant analog emergency telephone, based on the standard JR210-1B-AL model, with two additional programmable buttons.

In university settings – particularly on large campuses in Japan – safety and rapid emergency response are top priorities. Students, faculty, and visitors need reliable, easy-to-use communication points in parking lots, walkways, sports fields, and building entrances. Standard mobile phones are not always sufficient in emergencies due to network congestion or lack of signal. Therefore, a dedicated, rugged emergency telephone is essential.

Our solution starts with the JR210-1B-AL, a field-proven vandal-resistant telephone. Its housing is made of robust cold-rolled steel, meeting IP65 protection against dust and water jets. It also complies with IK10 (impact resistance), CE, FCC, RoHS, and ISO9001 standards. The handset features an armored 83 cm cord, a noise-canceling microphone, and hearing aid compatibility (HAC). The standard model includes one metal call button for hotline or emergency services.

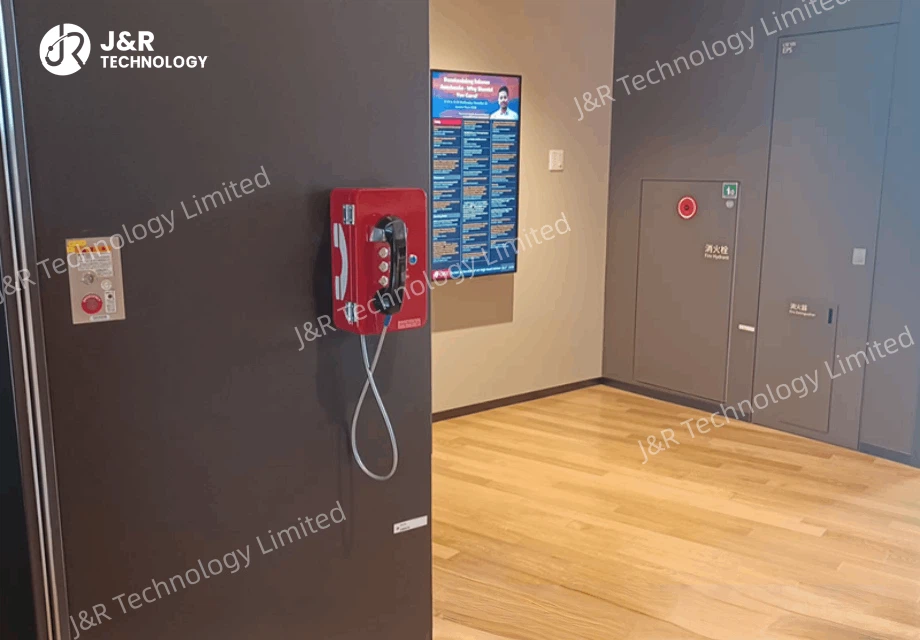

For this Japanese university project, we have added two extra buttons to the standard design. These buttons are fully programmable via DTMF tones or remote configuration. One common use case is programming Button 2 for campus security and Button 3 for a second emergency number, such as the local police or fire department. Alternatively, the additional buttons can be used for non-emergency services, such as a campus information hotline or maintenance request. This flexibility allows the university to reduce nuisance calls to emergency dispatchers while still providing a quick, one-touch connection for genuine emergencies.

The telephone is analog and line-powered, drawing 20–100 mA from the existing telephone line (24–65 VDC). It operates reliably from -40°C to 65°C, well within Japanese seasonal temperature ranges. Ringing volume reaches 80 dB at 1 meter, ensuring audibility even in noisy environments. The unit supports auto-dialing with a programmable delay after off-hook, scheduled self-test calls to a central control phone, and one relay for remotely controlling external devices such as strobe lights or cameras.

In terms of installation, the telephone is wall-mounted and includes a grounding device with electrical isolation from internal circuits, reducing electromagnetic interference and ensuring clear voice quality without feedback.

Optional accessories, such as the JR-LP-01 LED light or JR-LP-02 beacon light, can be added to visually indicate an active call or emergency zone. For wider area coverage, a broadcast horn (JR-HSA series) can be integrated.

In summary, this customized JR210-1B-AL emergency telephone combines industrial-grade durability, flexible two-button programming, and analog reliability – perfectly suited for a Japanese university campus. It offers students and staff a simple, immediate way to request help, enhancing overall campus safety.
