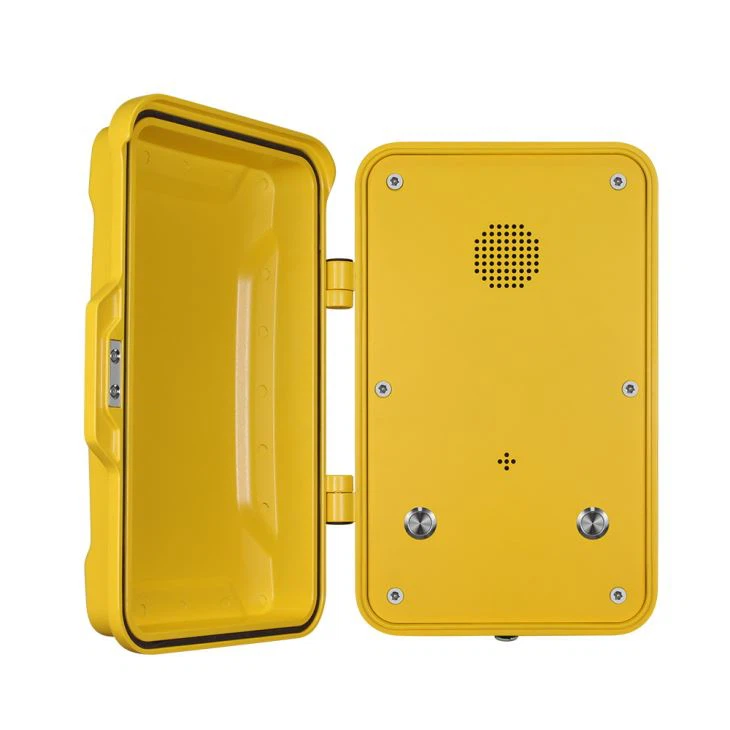

Impact Resistant Speed Dial Telephone JR102-2B-VoIP
As a weatherproof industrial telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. Ideal for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Description
Model Number: JR102-2B-VoIP
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
APPLICATIONS of Impact Resistant Speed Dial Telephone
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
MAIN FEATURES of Impact Resistant Speed Dial Telephone
Standard VoIP/SIP phone
Aluminum alloy die-casting body
Vandal resistant metal button
Handsfree operation
Two buttons for emergency call
Weather proof protection to IP67
Wall/ Pillar mounting, simple installation
External power supply or PoE (SIP-VoIP)
RJ45 port for SIP phone
Compatible with standard SIP protocol, independently accessible to VOIP phone system.
(Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX);
CE, FCC, RoHS, ISO9001 compliant
OPTIONAL of Impact Resistant Speed Dial Telephone
- Add Horn & Lamp on the top
- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate
TECHNICAL SPECIFICATIONS of Impact Resistant Speed Dial Telephone
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer volume | - 90~95dB(A) at a distance of 1 m |
Protection type | IP 66 as per EN60529 |
Operating temperature | -40°C to +70°C |
Storage temperature | -45°C to +85°C |
Voice Features
Support 2 lines SIP, SIP 2.0 (RFC3261)
Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726
Echo cancellation: Support G.168 and hand-free can support 96ms
Supports full duplex.
SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer
SIP support 2 servers, user can through each server to calling in and out
Network Features
WAN/LAN: support Bridge mode
Support PPPoE for xDSL
Support VLAN
Support Stun penetration
Support DHCP get IP on WAN port
CERTIFICATIONS
PACKAGE of Impact Resistant Speed Dial Telephone
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: pearl cotton, carton
Net weight: 6 KG
Gross weight: 7 KG
Hot Tags: Impact Resistant Speed Dial Telephone Impact Resistant Speed Dial Telephone JR102-2B-VoIP, weatherproof telephone, heavy duty industrial telephone, moisture resistant phone, IP67 outdoor help point, vandal-proof tunnel phone, mining phone, marine SIP phone, chemical plants Telephone
