Weatherproof Auto Dial Telephone with Lamp JR101-CB-L
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. Available for Analog, SIP/VoIP, GSM/3G versions.
Description
Model Number: JR101-CB
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

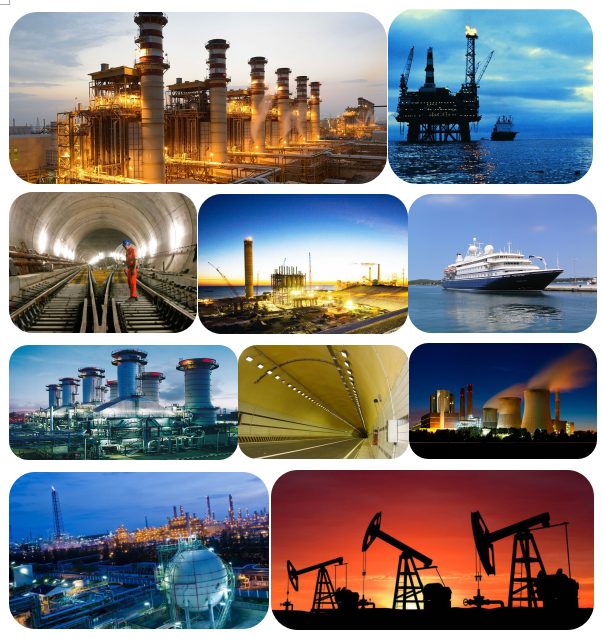

APPLICATIONS of Weatherproof Auto Dial industrial Telephone with Lamp
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
MAIN FEATURES of Weatherproof Auto Dial industrial Telephone with Lamp
- Standard Analogue phone or SIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- With LED lamp fixed on the top
- Weather proof protection to IP66-IP67
- Programmable for auto-dial
- Wall/ Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analogue)
- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
- Compatible with standard SIP protocol, independently accessible to VOIP phone system.
(Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX)
- CE, FCC, IOS9001, RoHS compliant
TECHNICAL SPECIFICATIONS of Weatherproof Auto Dial industrial Telephone with Lamp
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer volume | - 90~95dB(A) at a distance of 1 m |
Protection type | IP 66 as per EN60529 |
Operating temperature | -40°C to +70°C |
Storage temperature | -45°C to +85°C |
CERTIFICATIONS
PACKAGE of Weatherproof Auto Dial industrial Telephone with Lamp
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: pearl cotton, carton
Net weight: 6 KG
Gross weight: 7 KG
Hot Tags: Weatherproof Auto Dial industrial Telephone with Lamp,weatherproof telephone, heavy duty industrial telephone, moisture resistant phone, IP67 outdoor help point, vandal-proof tunnel phone, mining phone, marine SIP phone, chemical plants Telephone
