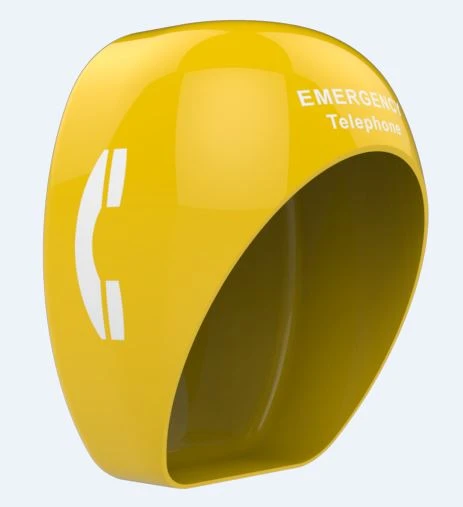

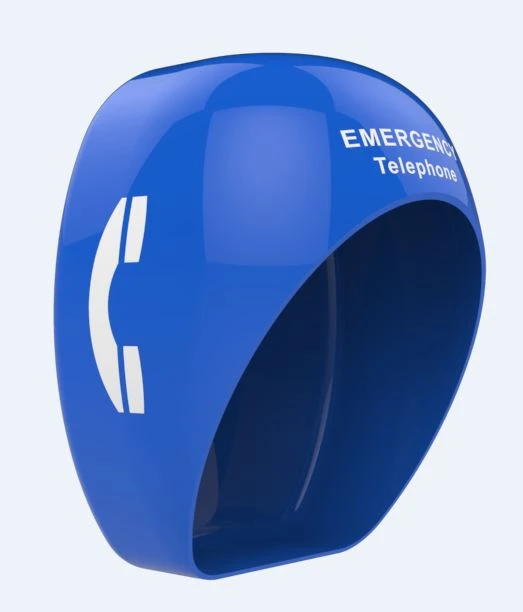

Public Phone Booth JR-TH-02
The phone booth from J&R Technology Ltd has great sound proofing qualities that greatly enhance communication in areas with high background noise levels. The JR-TH-02 telephone hood can be fitted with accessories including strobe lights, sounders, and the SR40/60 explosion proof speaker/ ringer, speaker or ringer.
Description
Model Number: JR-TH-02
Acoustic Telephone Booth | |
Model No. | JR-TH-02 |
Materials | Fiberglass reinforced polyester(GRP) |
Size | 690*480*800 (mm) |
Application | • Refineries • Aerospace • Nuclear facilities |
MAIN CHARACTERISTICS of Public Phone Booth
• P9042 - Acoustic insulation: Noise Attenuation up to 15 dB
• Polyethylene plastic construction
• Polyethylene material ANSI/UL94 flammability approved
• Durable, lightweight, chemical resistant body
• Excellent low temperatures impact properties
• High performance polyurethane acoustic insulation liner, resistant to mildew and rot.
Fire retardant class "0" rating
• Completely maintenance free, UV and corrosion resistant, impervious to chemical attack
• Convenient writing shelf with drainage hubs to prevent water accumulation
• Can be used both indoors, outdoors and offshore
• Permanent black handset graphic molded into the booth surface
• Standard color - Yellow or customized
• Optional colors available upon request 1

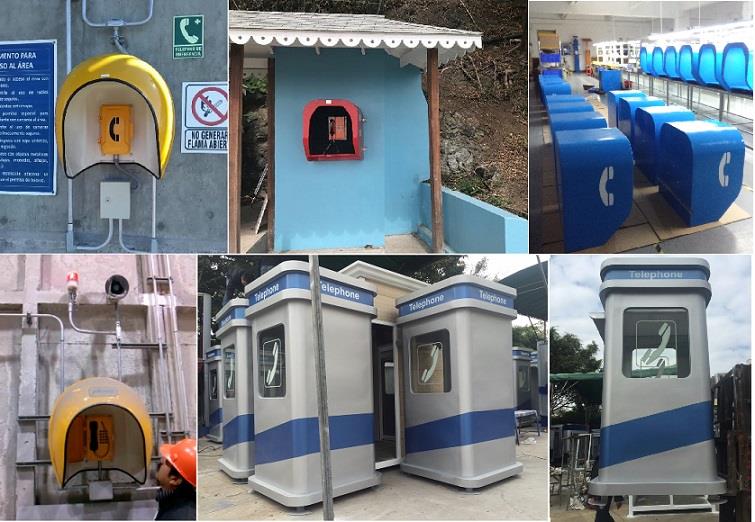

APPLICATIONS of Public Phone Booth
Refi neries, Aerospace, Nuclear facilities, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.
SPECIFICATIONS of Public Phone Booth
• Weight - Approx 20 Kg

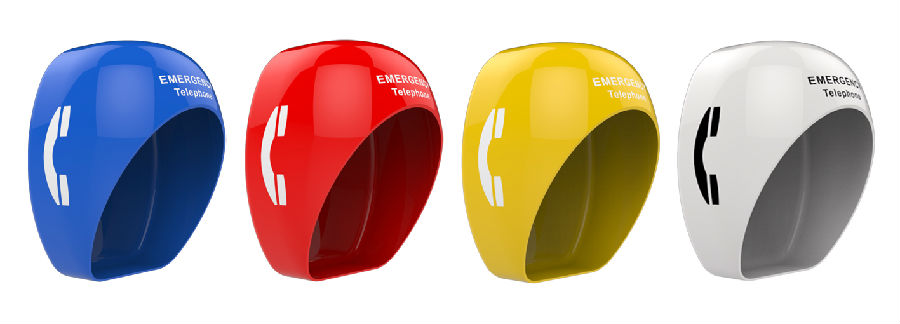

• Stock Colour - Yellow , Blue, Red, Others to order
• Outer Shell - General Purpose Resin continuous filament mat - Fire Resistance to BS476 Part 7
Class 1 Surface Spread of Flame
• Cold-rolled Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
• Insulation Liner - White Perforated Polypropylene 3mm thickness
• Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
• Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness

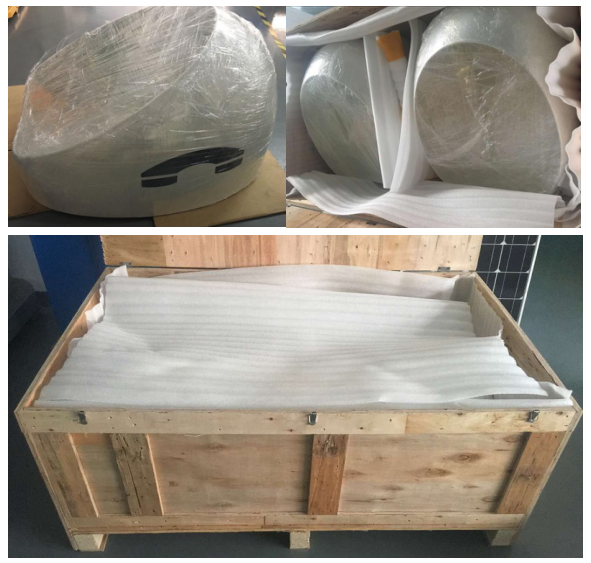

PACKAGE & DIMENSIONS of Public Phone Booth
Unit size: 690 *480 *800 (mm)
Packaging materials: Pearl cotton, Wooden box
Gross weight: 30 KG
Net weight: 18 KG
