IP Hotline Industrial Waterproof Phones
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Description

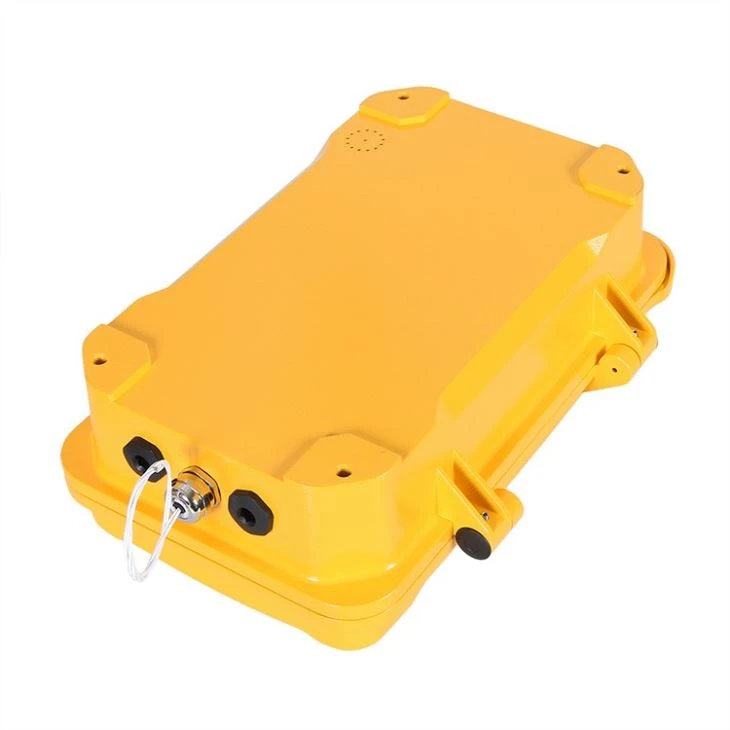

IP Hotline Industrial Waterproof Phones Front & Top Back & Bottom
Product Description IP Hotline Industrial Waterproof Phones
JR101-CB IP Hotline Industrial Waterproof Phones has eye-catching yellow husing color by default, which is easy to spot. The aluminum alloy die-casting shell of JR101-CB can withstand a great deal of punishment. The imported seal ring is placed inside to extend service life and ingress protection rating is up to IP67. Even in the hazardous areas, IP Hotline Industrial Waterproof Phones may offer reliable voice and high quality communication. Die cast aluminium, epoxy powder coated Yellow, other colors to special order Cycoloy with stainless steel spiral cord No keypad Operating: -30°C to +65°C Storing: -40°C to +75°C Casing Material Colors Handset Material Keypad Temperature Weather Resistance IP67 Ringing Tone Shrill warble tone 80 dBA at 1 metre typical Hook switch Electronic / magnetic with no visible moving parts M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using Weight Up to 7 kg depending on option
Technical Specification IP Hotline Industrial Waterproof Phones Features IP Hotline Industrial Waterproof Phones Applications IP Hotline Industrial Waterproof Phones JR101-CB IP Hotline Industrial Waterproof Phones more commonly used in airport,railway, mine, underground pipe gallery, tunnel, sewage plant, power plant, steel plant, food products factory and so on. Packing & Delivery IP Hotline Industrial Waterproof Phones Customised Accessories IP Hotline Industrial Waterproof Phones J&R provide LOGO printing and accessories customization services. We will also provide suitable solutions according to the needs of customers. HOOK FUNCTION: Magnetic hooks for choice KEYBOARD SHAPE: Round buttons and square buttons for choice INDICATOR LAMP COLOR: Red, yellow, blue, green for choice MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice HADSET CORD: Black curly handset cord or stainless steel spiral cord If you have any custom requirements, please feel free to contact us. Our Company IP Hotline Industrial Waterproof Phones J&R Technology offers a wide variety of special telephones and unique customs services to customers. Our telephone is suitable for all IP systems, and we have provided many customers with excellent emergency system solutions and customized telephone service, which is very mature in the manufacturing of the telephone. FAQ IP Hotline Industrial Waterproof Phones Q: Do you have any MOQ limit? A: Low MOQ, 1pc is available Q: Can I have a sample order ? Q: What about the lead time? Q: What’s the quality standard of your products? A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory. Q: Is it OK to print my logo on the products? Q: Can you produce a product in a color of my choosing? A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable. Q: Do you provide an installation service? A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure. Q: When can I receive your quotation? A: Within 12 hours Q: How can I pay you? A: Many convenient methods for choose: Paypal, T/T, L/C.
Analogue Version Power Supply From the analogue telephone network Supply Voltage 24 VDC to 65 VDC Supply Current 20 mA DC to 100 mA DC Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23. SIP Version Power Supply PoE or 12V DC Power Consumption -Idle:1.5W
-Active:1.8W SIP Protocol SIP 2.0 (RFC3261) Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729 Communication Type Full duplex Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)Ambient conditions Protection Type IP 66 as per EN60529 Operating Temperature -30°C to +70°C Storage Temperature -40°C to +75°C
★ Imported ABS and PC composite handset - vandal resistant
★ 6 stainless steel tamper screws - to prevent theft and tampering
★ Easy to use - automatic dial-up while pick up handset

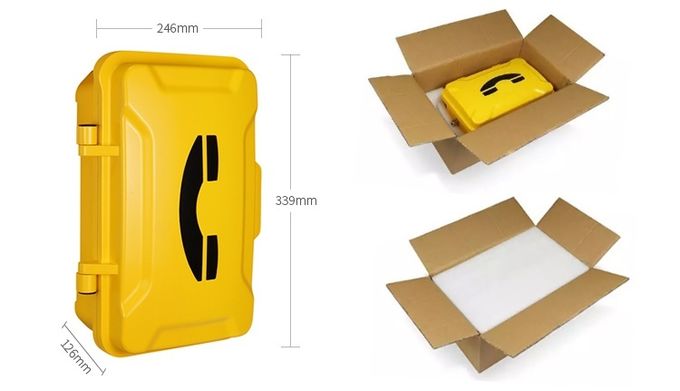

Unit Size 339 *146 *126 (mm) Carton Size 200 *300 *440 (mm) Packaging Materials Pearl cotton, carton Net Weight 6 KG Gross Weight 7 KG
Port Shenzhen, Guangdong Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)Quantity(Sets) 1 2-500 >500 Est. Time(Days) 2 25 To be negotiated
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
