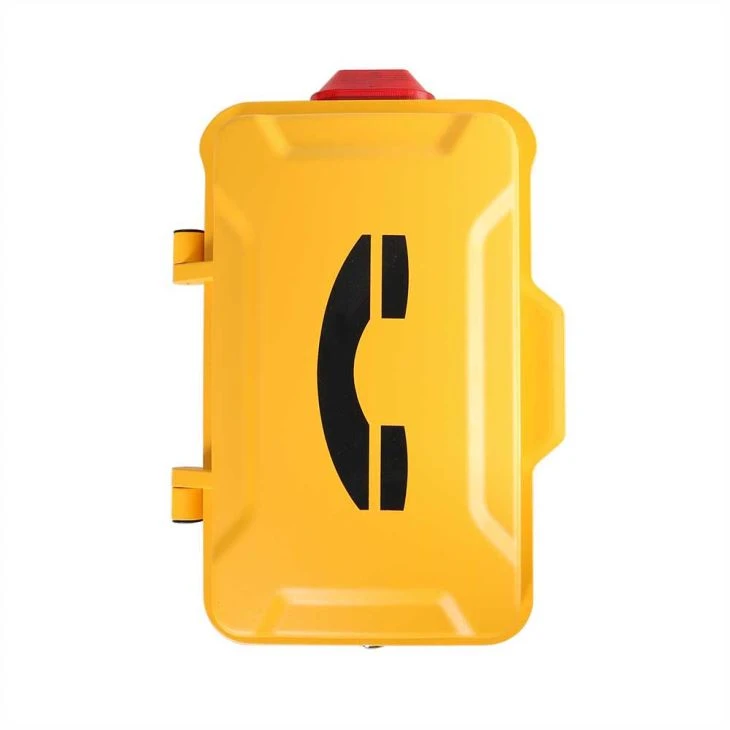

J&R IP67 Waterproof Railway SOS Telephone JR101-CB-L-GSM
Color:Yellow or Customized
Function:Waterproof
Version:Analog/ SIP/ GSM/ 3G
Mounting:Wall /Pillar Mounted
Size:339*246*126(mm)
Net Weight: 6kg
Certificate:CE, FCC, RoHs, ISO9001
Package:Pearl Cotton, Carton
Function:Weatherproof
Description
Model Number: JR101-CB-L-GSM

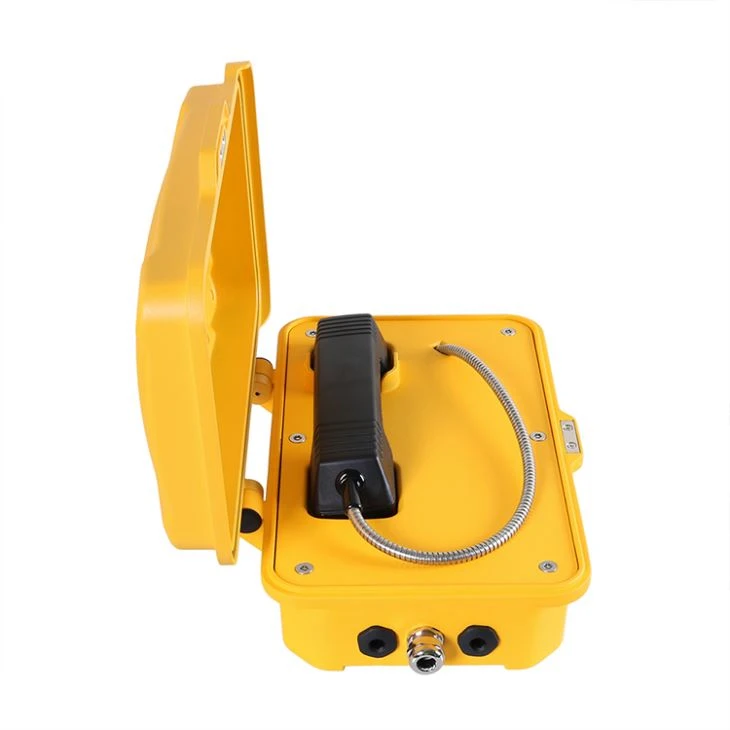

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
The JR100 series Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.
APPLICATIONS
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
MIAN FEATURES of J&R IP67 Waterproof Railway SOS Telephone
Standard Analogue phone or SIP/GSM/3G phone
Aluminum alloy die-casting body
Vandal resistant handset and cord
Weather proof protection to IP67
Programmable for auto-dial
Wall mounting, simple installation
Inductive coupler fitted as standard for hard of hearing
Phone line powered(analogue)
External power supply or PoE (SIP)
RJ45 Port for SIP connection
CE,FCC,ROSH compliant
OPTIONAL
- Add Horn & Lamp on the top
- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate
TECHNICAL SPECIFICATIONS of J&R IP67 Waterproof Railway SOS Telephone
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version | |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W -Active:1.8W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
3G Version | |
Power Supply | 12V DC |
Power Consumption | -Idle:0.3W -Active: 1.5W |
Communication Type | Full duplex |
Ringer volume | 90~95dB(A) at a distance of 1 m |
Program Method | Remote programming by SMS |
Frequency | A version: |
Ambient conditions | |
Protection type | IP 66 as per EN60529 |
Operating temperature | -25°C to +70°C |
Storage temperature | -25°C to +85°C |
CERTIFICATIONS
PACKAGE of J&R IP67 Waterproof Railway SOS Telephone
| Unit size | 339*246*126 (mm) |
| Carton size | 200*300*440 (mm) |
| Packaging materials | pearl cotton, carton |
| Net weight | 6 KG |
| Gross weight | 7 KG |
