Weather Resistant Emergency Telephone JR103-CB-Analogue

Certificate:CE, FCC, RoHS, IP67, ISO9001
Material:Aluminum alloy
Color:Yellow (or optional)
Version:Analog, VoIP, GSM, 3G
Weather resistant:IP67
Warranty:2 Years
Size:246 *339 *109 (mm)
Net Weight:6 KG
Installation:Wall/ Pillar Mounting

  PRODUCT DESCRIPTION

Weather Resistant Emergency Telephone JR103-CB-Analogue

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.

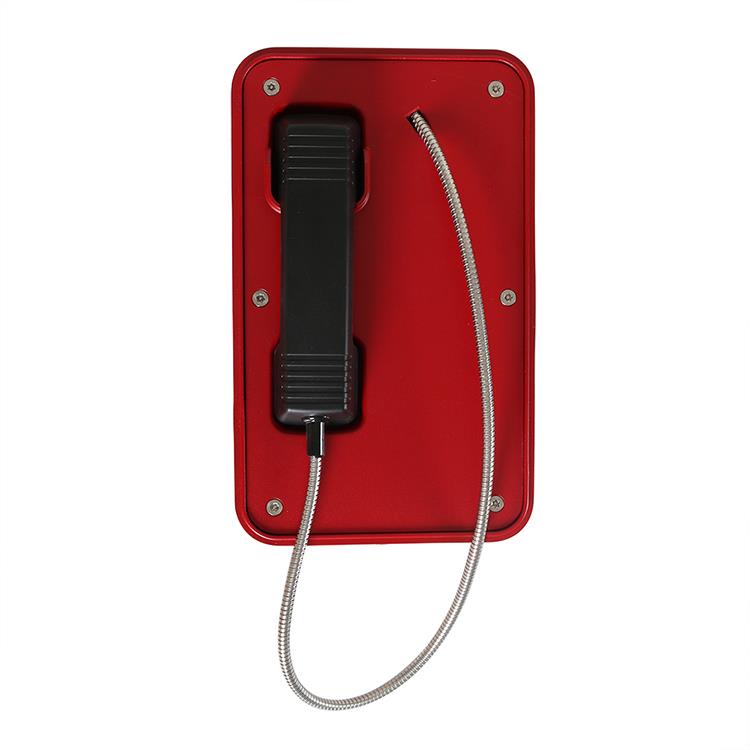

JR103-CB color optional industrial GSM SIP emergency hotline telephone (9)

  MAIN FEATURES
Weather Resistant Emergency Telephone JR103-CB-Analogue

- Standard Analog, VoIP, or GSM/3G phone

- Wall/ Pillar mounting, simple installation

- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord


- Weather proof protection to IP67

- Phone line powered (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone


- Programmable for auto-dial

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, ISO9001, RoHS compliant


  APPLICATION
Weather Resistant Emergency Telephone JR103-CB-Analogue

This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.


  TECHNICAL PARAMETERS

Weather Resistant Emergency Telephone JR103-CB-Analogue

SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
 -Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)


3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
 -Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency

 A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz


Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C


  PACKAGE

Weather Resistant Emergency Telephone JR103-CB-Analogue

Unit Size:   339*246*109 mm (H *W * D)
Carton Dimension:   200 * 300 *440 mm (H * W * D)
Packaging materials:    pearl cotton, carton
Net Weight:   5 KG
Gross weight:   6 KG


  OUR COMPANY

The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.


The industrial Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.
