Water Proof Telephone With Flashing Beacon JR101-FK-L

This Water Proof Telephone with Flashing Beacon is fully contained within a corrosion and vandal resistant cast aluminium weatherproof case with a pivoted door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. With LED lamp fixed on the top, When there is a incoming call, the lamp will flashing.

  Model Number:JR101-FK-L

This Water Proof Telephone with Flashing Beacon is fully contained within a corrosion and vandal resistant cast aluminium weatherproof case with a pivoted door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


  Applications of Waterproof telephone

This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.


waterproof telephone.png


  Main Features of Waterproof telephone

- Standard Analogue phone

- Also available in SIP/VoIP, GSM/3G version

- Vandal resistant handset and armored cord


- Weather proof protection to IP66-IP67

- With LED lamp fixed on the top, When there is a incoming call, the lamp will flashing.

- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

   “LR” button for last number redial

   “R” for flash recall

   “M” for muting


- Can be programmed remotely by tone phone or locally via keypad

- Wall / Pillar mounted, Simple installation

- Inductive coupler fitted as standard for hard of hearing


- Phone line powered (Analogue)

- External power supply or PoE (SIP-VoIP)

- RJ45 port for SIP phone

- CE, FCC, RoHS, ISO9001 compliant



  TECHNICAL SPECIFICATION of the Waterproof telephone

Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

- 80dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

- 90~95dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions

Protection type

IP 66 as per EN60529

Operating temperature

-40°C to +70°C

Storage temperature

-45°C to +85°C

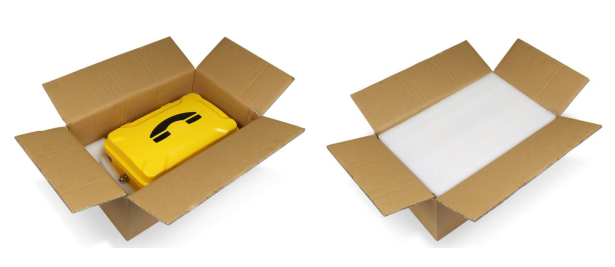

  RACKAGE of Weather-resistant telephone

Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: Pearl cotton, Carton
Net weight: 6 KG
Gross weight: 7 KG


  Main Features of the Flashing Beacon

- Main Features of flashing Beacon

- Adopted the vacuum processing mirror,Improve the brightness diffusion

- Rated revolution:120-140 RPM

- Adopt High Brightness LED light bulb glow, illuminance>800LX,Lifespan>1000 hours

- Material:lampshade-PS Base-ABS Reflector-ABS

- Protection class:IP55





  Specification of the Flashing Beacon

Type

LED light bulb

Operating voltage

DC12VDC24VDC36VDC48VAC36VAC48VAC110VAC220VAC380V (Optional)

Power consumption

0.5W

Humidity

10% ~+ 90%

Color

Red/Yellow/Blue/Green





  Certifications





J&R Technology is one of the leading China water proof telephone with flashing beacon jr101-fk-l manufacturers and suppliers with one of the famous brands, we also have our own factory, we are a professional company and can offer you best water proof telephone with flashing beacon jr101-fk-l products. Welcome to buy high-quality products from us.
