Mining Tunnel Telephone JR101-FK-L-SIP

Color:Yellow or Customized
Weight:6kg
Material:Aluminum alloy
Certificate:CE, FCC, RoHs, ISO9001
Function:SOS
Feature:Weatherproof
Size:204*334*109(mm)
Modle:Analog/ SIP/ GSM/ 3G
Mounting:Wall /Pillar Mounted

PRODUCT DESCRIPTION

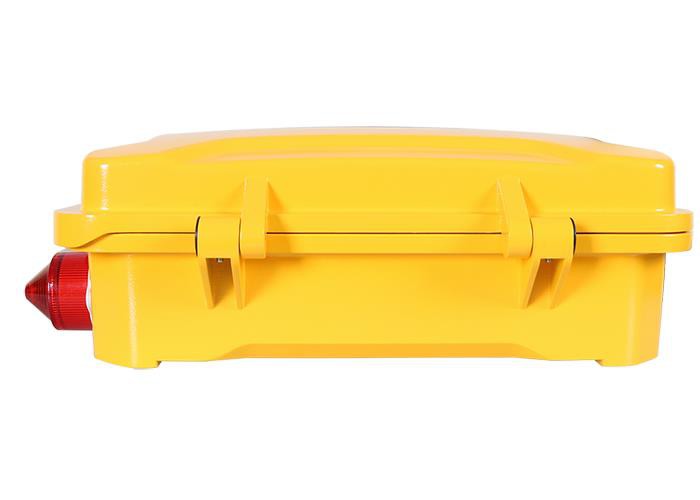

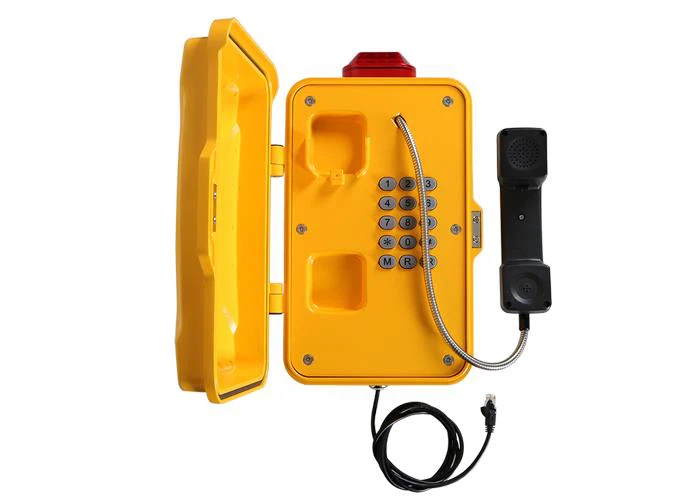

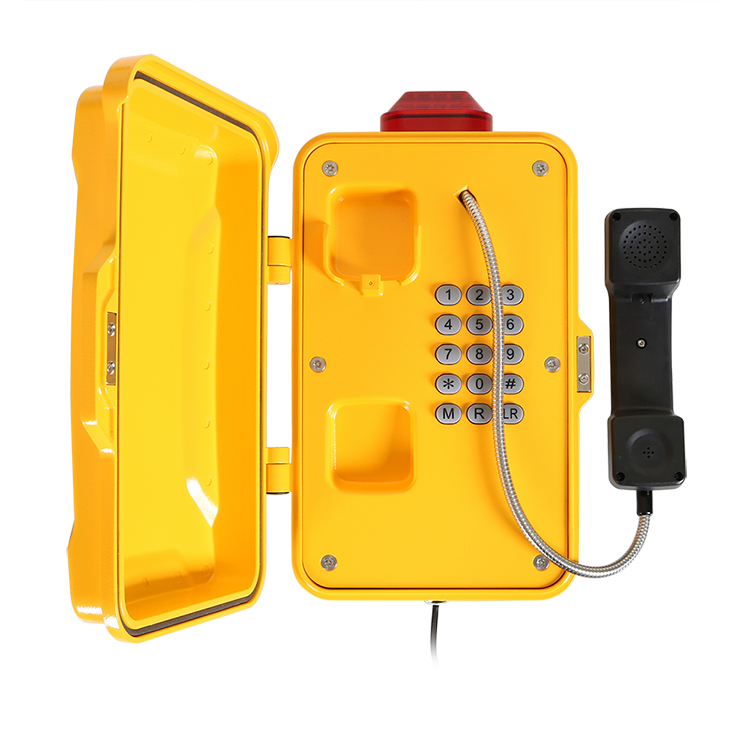

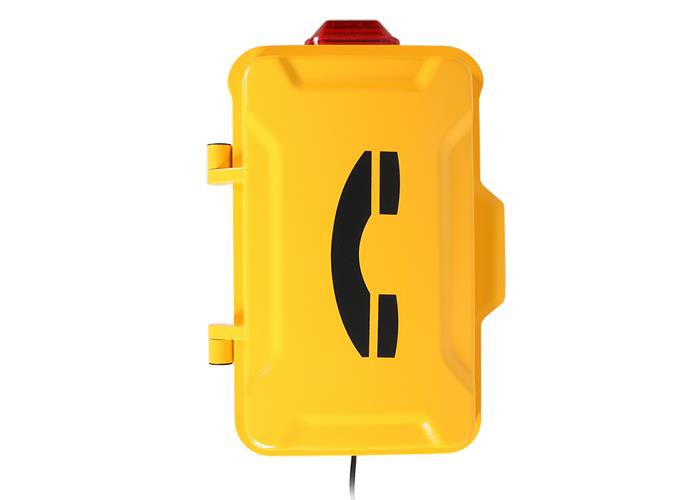

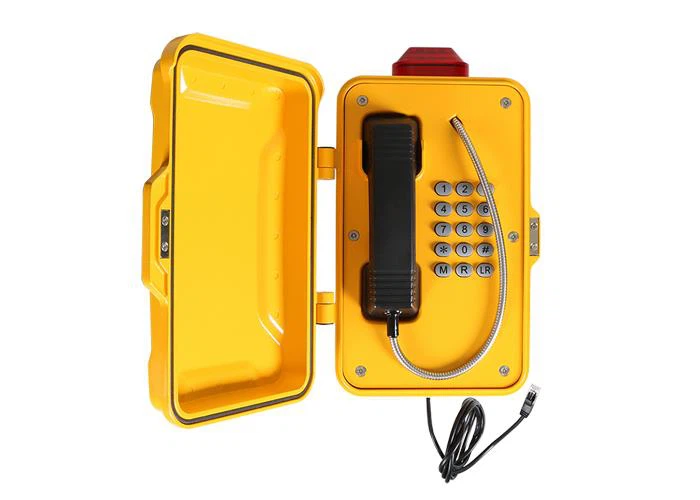

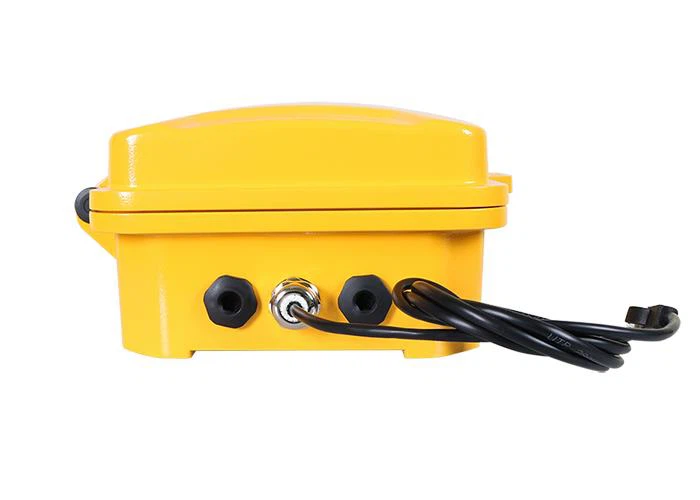

Mining Tunnel Telephone JR101-FK-L-SIP

The heavy duty telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.

The JR100 series Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.


OEM&ODM service is available. We will do our best to meet customer's requirements !!!

Advantage notice:   intercom SIP VOIP analogue version telephone,Ideal for metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.2 years warranty time!!!





Voice  Features

Mining Tunnel Telephone JR101-FK-L-SIP

1.Support 2 lines SIP, SIP 2.0 (RFC3261)

2.Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

3.Echo cancellation: Support G.168 and hand-free can support 96ms

4.Supports full duplex.

5.SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer

6.SIP support 2 servers, user can through each server to calling in and out



Network Features

Mining Tunnel Telephone JR101-FK-L-SIP

1.WAN/LAN: support Bridge mode

2.Support PPPoE for xDSL

3.support VLAN

4.Support Stun penetration

5.Support DHCP get IP on WAN port

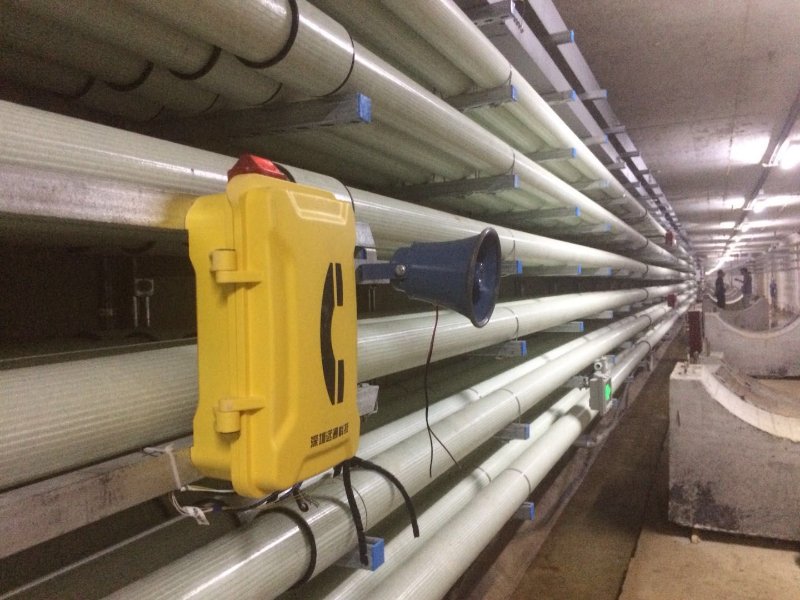

Installation

Mining Tunnel Telephone JR101-FK-L-SIP

8



TECHNICAL SPECIFICATIONS

Mining Tunnel Telephone JR101-FK-L-SIP

1.Casing MaterialDie cast aluminium, epoxy powder coated. Colors

2.Handset Material :Cycoloy with stainless steel spiral cord

3.Keypad:Rubber Keypad

4.Temperature:Operating: -30°C to +65°C  Storing: -40°C to +75°C

5.Weather Resistance:IP67

6.Ringing Tone:Shrill warble tone 80 dBA @ 1 metre typical

7.Hook switch:Electronic / magnetic with no visible moving parts

8.M.T.B.F.:Calculated to have an M.T.B.F. in excess of 50,000 hours using

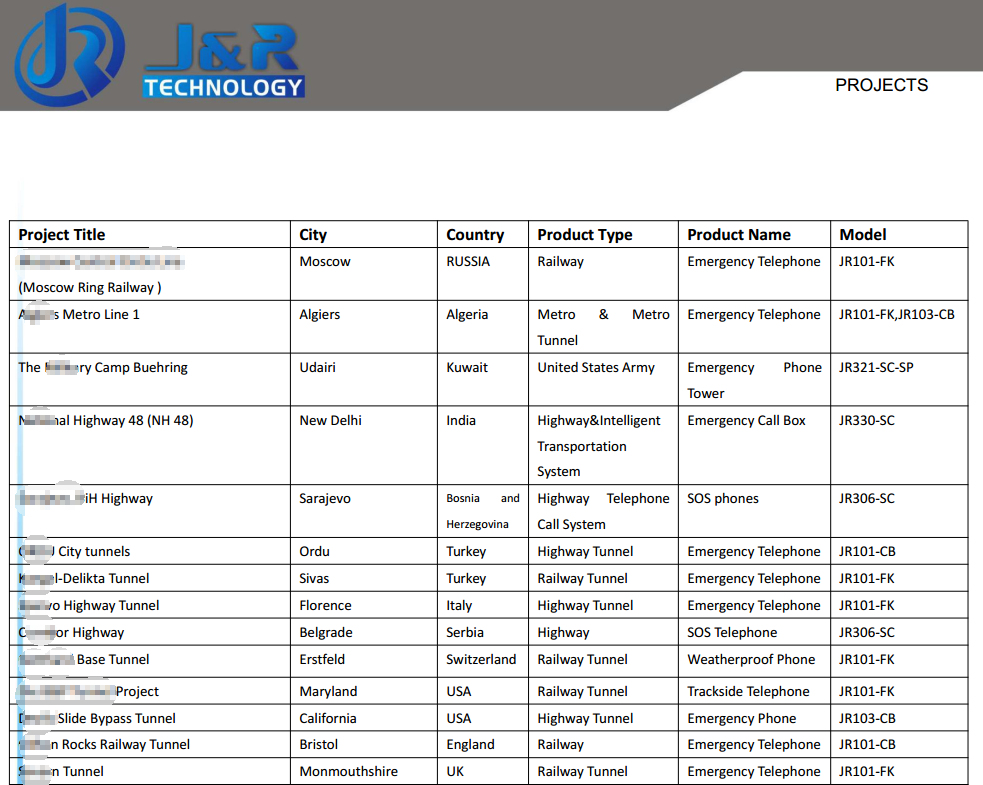

Finished Project Lists reference

sales1jrteck.com 01



Our company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.

(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)

 After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.

 We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.

 and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.

We appreciate your business and we look forward to assisting you. Thanks again for your support and understanidng.

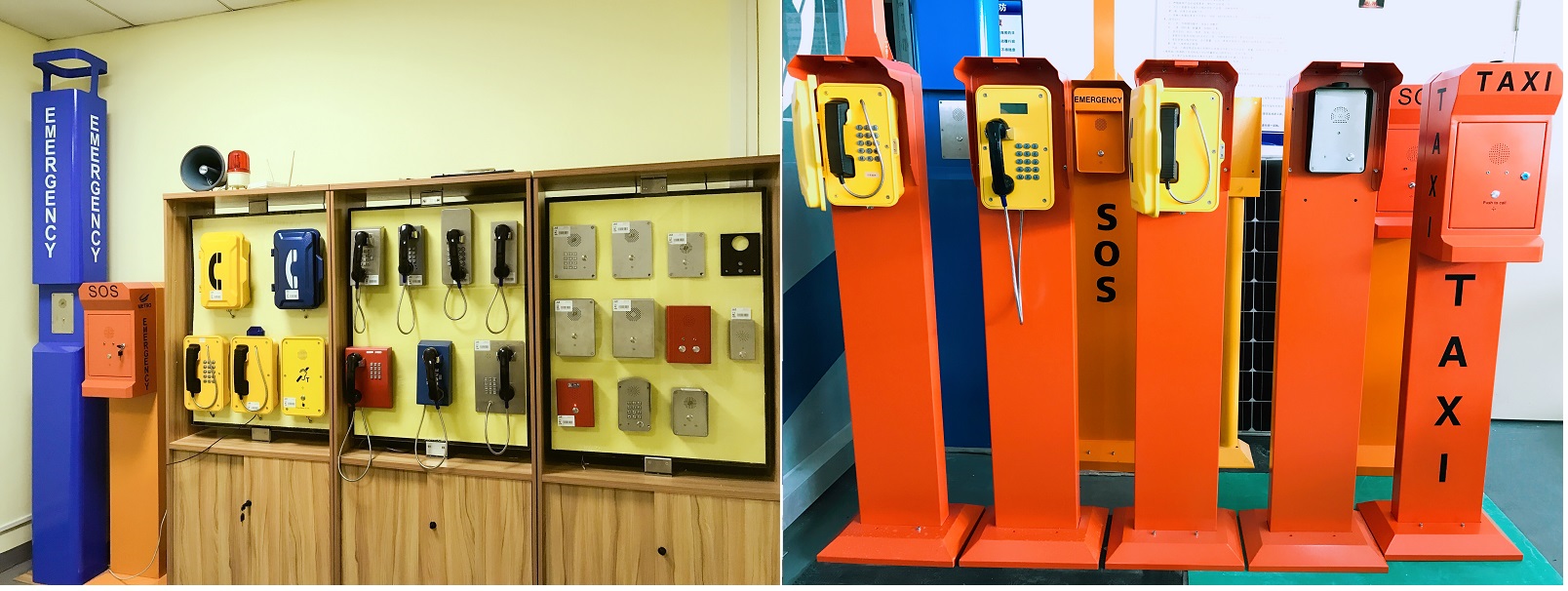

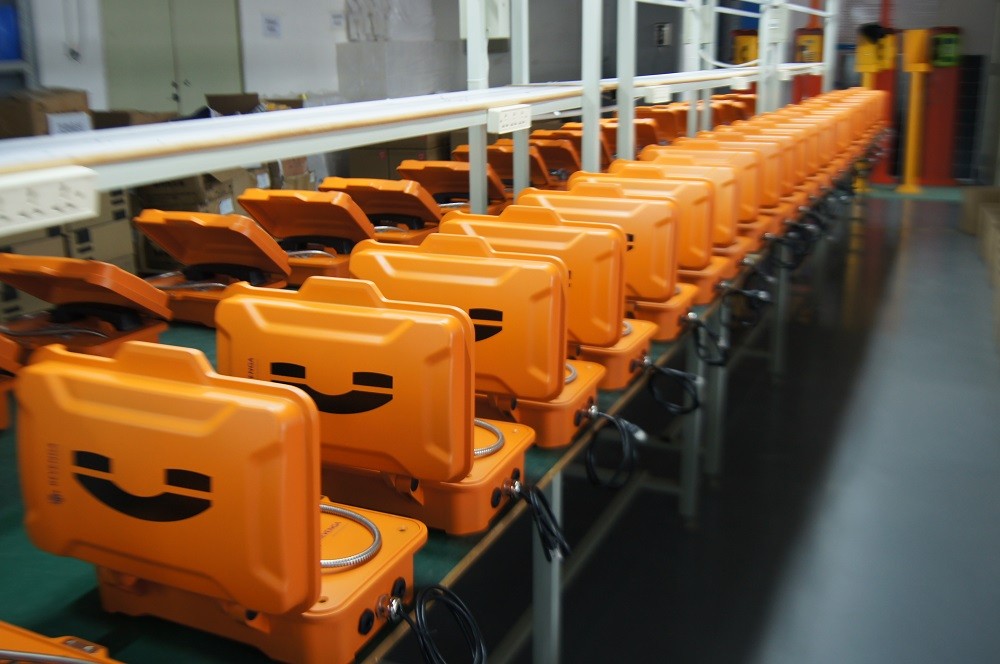

Factory Line and Samples Room

Weatherprooof phone (4)



Samples Room.jpg

Certifications




Package



2





4



After Sell Service:  2 years warranty time, 7*24 hours online professional technical support!!!

Q&A:



QDo you have any MOQ limit for Broadcasting Telephone,,Anti-vandal Telephones,Weatherproof Enclosure for using in Pole JR101-FK  ?
A: Low MOQ, 1pc is available



QWhat about the lead time for Broadcasting Telephone,,Anti-vandal Telephones,Weatherproof Enclosure for using in Pole JR101-FK ?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.

     And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q:Will you do OEM or Customzied work for Broadcasting Telephone,,Anti-vandal Telephones,Weatherproof Enclosure for using in Pole JR101-FK  ?
A: Yes. Any OEM/ODM/Customzied work are welcomed!!! Pls send your email to us about it.



Q: How is your after sell service?

A: 2 years warranty time, 7*24 hours online professional technical support!!!

If you have any questions, Pls don't hesitate to contact us, Thank you.
