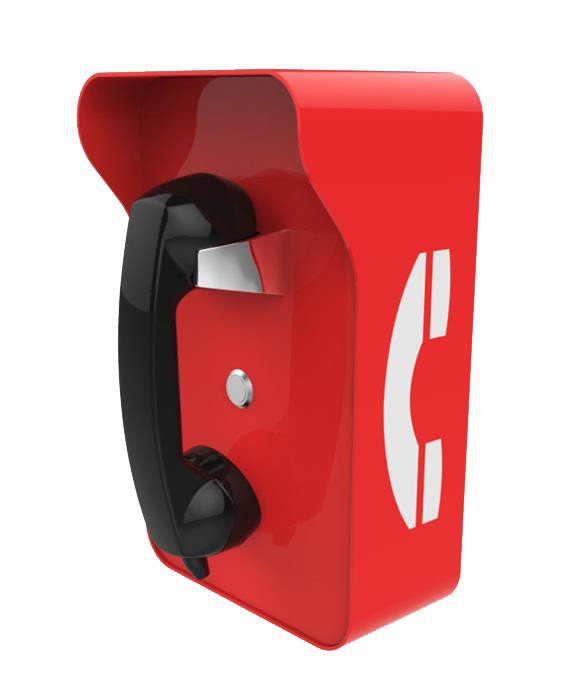

Anti-vandal Speed Dial Industrial Telephone JR210-1B

Anti-vandal Speed Dial Industrial Telephone JR210-1B

This Telephone is housed in cold rolled steel box and manufactured to a high standard, it offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF. Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, inside and outside building etc.

  Model Number:JR210-SC-OW


This Handset Telephone is designed to meet the needs of client who experience loss through vandalism. Housed in robust steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.

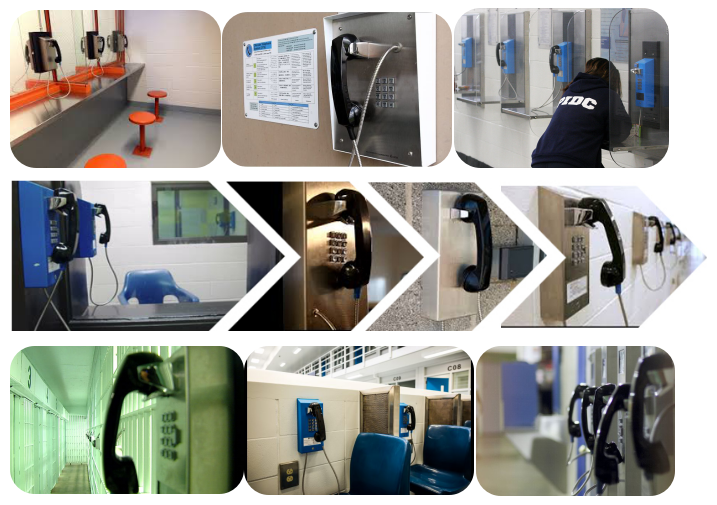

   Applications of Anti-vandal Speed Dial Industrial Telephone

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

anti-vandal handset phone.png

   Main Features of Anti-vandal Speed Dial Industrial Telephone
- Standard Analogue, SIP/VoIP, GSM, 3G Telephone
- Robust housing, constructed of cold rolled steel
- On wall mounting, simple intallation
- One button for speed dial
- Vandal resistant Handset and Cord
- Weather proof protection: IP55-IP65
- Inductive coupler fitted as standard for hard of hearing
- Tamper resistant fixings
- Fast-fit terminal connection
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Telephone line powered (Analogue)

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- Weatherproof and corrosion resisitant handset
- Stainless steel armoured handset cord
- CE, FCC, RoHS, ISO9001  compliant


  TECHNICAL SPECIFICATIONS of Anti-vandal Speed Dial Industrial Telephone

Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

- 80dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

- 90~95dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Temperature
Operating: -40°C to +65°C
Storing: -45°C to +75°C
Ringing Tone
Shrill warble tone 80 dBA @ 1 metre typical
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 50,000 hours using
Dialing
MF (tone)
Lightning / Transients
Protection to ITU-T k.21 enhanced levels


  PACKAGE of Anti-vandal Speed Dial Industrial Telephone
Unit size: 248*185*128 (mm)
Carton size: 340 *240 *160 (mm)
Packaging materials: pearl cotton, carton
Net weight: 3.5KG
Gross weight: 4.5KG


  CERTIFICATIONS

JR200 Certifications.png
