Hospital Telephones JR204-FK

The Hospital Telephones JR204-FK housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

  Model Number: JR204-FK


This  Handset Hospital Telephone is designed to meet the needs of client who experience loss through vandalism.


Housed in cold rolled steel box and manufactured to a high standard, this Hospital Telephones offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.


Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.



  APPLICATIONS of Hospital Telephones

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

anti-vandal handset phone.png



  MAIN FEATURES of Hospital Telephones

- Standard Analogue phone, or SIP/VoIP phone, or GSM/ 3G Phone

-Robust housing, constructed of cold rolled steel with powder coat, with LCD display

- Vandal resistant handset and armored cord


- Full Rugged & durable keypad, easy to operate

- Wall mounting, simple installation

- Weather proof protection IP54-IP65


- 4 additional buttons can programmable for auto-dial

- Inductive coupler fitted as standard for hard of hearing

-CE, FCC, RoHS, ISO9001 compliant


- Phone line powered (Analogue)

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection



  TECHNICAL SPECIFICATIONS of Hospital Telephones

Casing Material: Cold rolled steel body

Colors: Red, Grey, or option

Handset Material: ABS material handset with stainless steel spiral cord.

Keypad: Weather sealed tactile digital keypad.

                Chrome key and frame made of zinc alloy.Vandal resistance.

Weather Resistance: IP54-IP65

Ringing Tone: Shrill warble tone 80 dBA @ 1 metre typical

Hook switch: Electronic / magnetic with no visible moving parts

M.T.B.F.: Calculated to have an M.T.B.F. in excess of 40,000 hours using

Weight: Up to 4 kg depending on option



  Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

- 80dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.


  SIP Version

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

- 90~95dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)


   3G Version

Power Supply

12V DC

Power Consumption

-Idle:0.3W
-Active: 1.5W

Communication Type

Full duplex

Ringer volume

90~95dB(A)  at a distance of 1 m

Program Method

Remote programming by SMS

Frequency

A version:

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

E version:

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

J version:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz


   Ambient conditions

Protection type

IP 66 as per EN60529

Operating temperature

 -25°C to +70°C

Storage temperature

 -35°C to +85°C

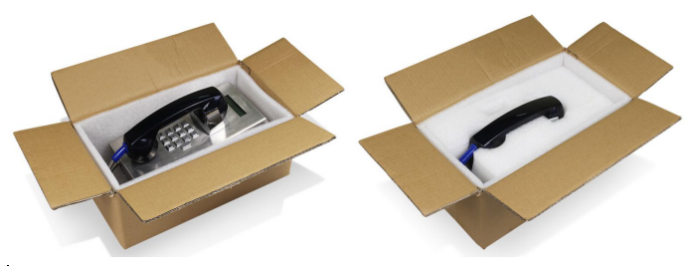

  PACKGAE & DIMENSIONS of Hospital Telephones

Unit size: 250 *160 *123 (mm)

Carton size: 340 *235 *165 (mm )

Packaging materials: Pearl cotton, Carton

Net weight: 3.5 KG

Gross weight: 4 KG

(Measured in mm)




  CERTIFICATIONS

JR200 Certifications.png

    FAQ

Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available.

Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q: What about the lead time?

A: Normally within 2-5 working days. We have materials in stock for most of hot selling products. And mass production time needs 3-4 weeks for order quantity more than 100 units.

Q: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products against delivery.

Q: What's the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.

Q: Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
