JR201-FK-Voice Control

Vandal Resistant Visitation Telephone/Prison Telephone This Telephone is housed in robust steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly...

  Vandal Resistant Visitation Telephone/Prison Telephone JR201-FK-VC

This Telephone is housed in robust steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.

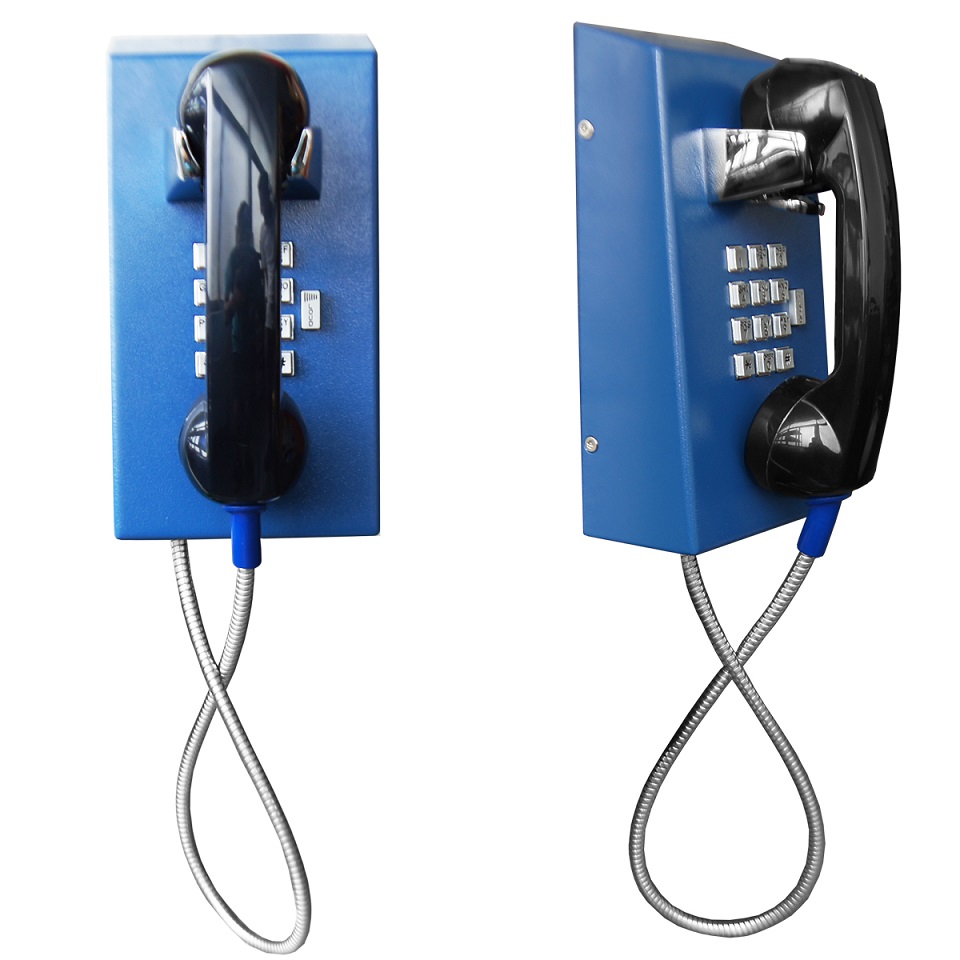

Rugged Prison phone (1).jpg

  APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
anti-vandal handset phone.png

  FEATURES
- Standard Analogue phone, or VoIP/SIP Phone
- Weather protection IP65
- Tamper resistant fixings,Simple installation
- Fast-fit terminal connection
- Mechanical hookswitch or Magnetic reed hook switch to reduce parts subject to wear
- Full Keypad with volume control button
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Weatherproof and corrosion resistant handset
- Stainless steel armoured handset cord
- Built-in user controlled volume “LOUD” button for ADA mandated volume control (user must have control of volume amplification AND volume must reset to normal with hang up to meet ADA requirements).
- Telephone line powered for Analog phone
- DC 5V powered or PoE
- Connection: RJ45 Ethernet socket through IP67 plug connector.
- Quality of Service (QoS): ensuring optimal delivery of voice
- Type of Service (ToS): high throughput and reliability (RFC3168)
- SIP (Session Initiation Protocol) RFC3261
- Inbuilt redundancy: able to make diversion calls to 2nd PBX
- TR069 (Technical Report 069): for advanced status monitoring and control
- Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
- Mass configuration available.
- CE, FCC, ISO9001, ROSH compliant


  CHARACTERISTICS


Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

- 80dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.


SIP Version

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

- 90~95dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions

Protection type

IP 66 as per EN60529

Operating temperature

-40°C to +70°C

Storage temperature

-45°C to +85°C

   CERTIFICATIONS


   PACKAGE

Unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3.5KG

Gross weight: 4KG

JR201-FK-VC (1).png

JR201-FK-VC (2).png


  SHIPMENT
