Automatic Dialers JR101-CB-VoIP

As a weatherproof Automatic Dialers, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. Ideal for Metro,...

  Model Number: JR101-CB-VoIP

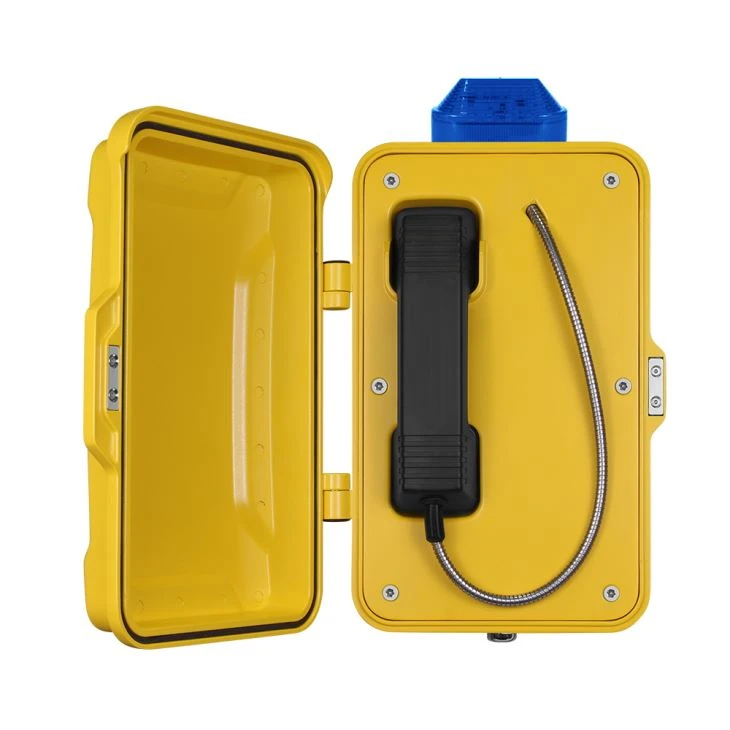

This Automatic Dialers is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

    The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.


  APPLICATIONS of Automatic Dialers
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.


  MAIN FEATURES of Automatic Dialers

- Standard Analogue phone or SIP phone

- Aluminum alloy die-casting body

- Vandal resistant handset and armored cord

- Weather proof protection to IP66-IP67

- Programmable for auto-dial

- Wall mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

- Phone line powered (Analogue)

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- CE, FCC, RoHS, ISO9001 compliant


OPTIONAL

- Add Horn & Lamp on the top

- Key lockable latch

- Upper & lower internal mounting plates

- Flat label area or custom embossed logo on door

- Vandal resistant screws for upper mounting plate


  TECHNICAL SPECIFICATIONS of Automatic Dialers

SIP Version

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

- 90~95dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions

Protection type

IP 66 as per EN60529

Operating temperature

-40°C to +70°C

Storage temperature

-45°C to +85°C


Voice Features

  • Support 2 lines SIP, SIP 2.0 (RFC3261)

  • Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

  • Echo cancellation: Support G.168 and hand-free can support 96ms

  • Supports full duplex.

  • SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer

  • SIP support 2 servers, user can through each server to calling in and out

Network Features

  • WAN/LAN: support Bridge mode

  • Support PPPoE for xDSL

  • Support VLAN

  • Support Stun penetration

  • Support DHCP get IP on WAN port


   OUR SERVICE

1. ODM & OEM products or solutions

2. Sample order is greatly welcomed.

3. We will reply your inquiry within 12 hours

4. Update the productive process and show the packing details

5. After delivered the goods, we will track the products for you once every two days, until you get the products. When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.

Heavy Industry Solution.jpg

   PACKAGE of Automatic Dialers
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 ( mm )
Packaging materials: pearl cotton, carton
Net weight: 6 KG
Gross weight: 7 KG




   SHIPMENT of Automatic Dialers


   CERTIFICATIONS
