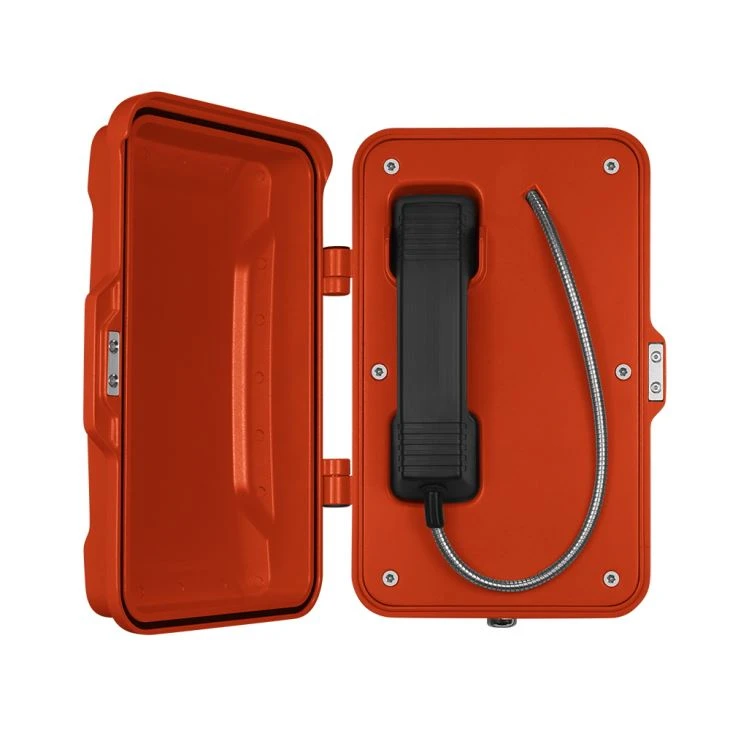

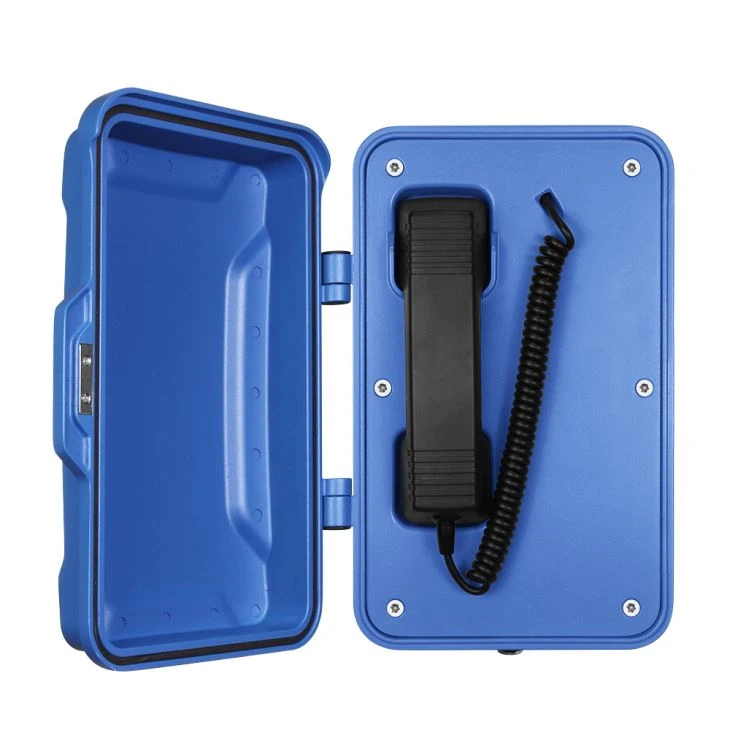

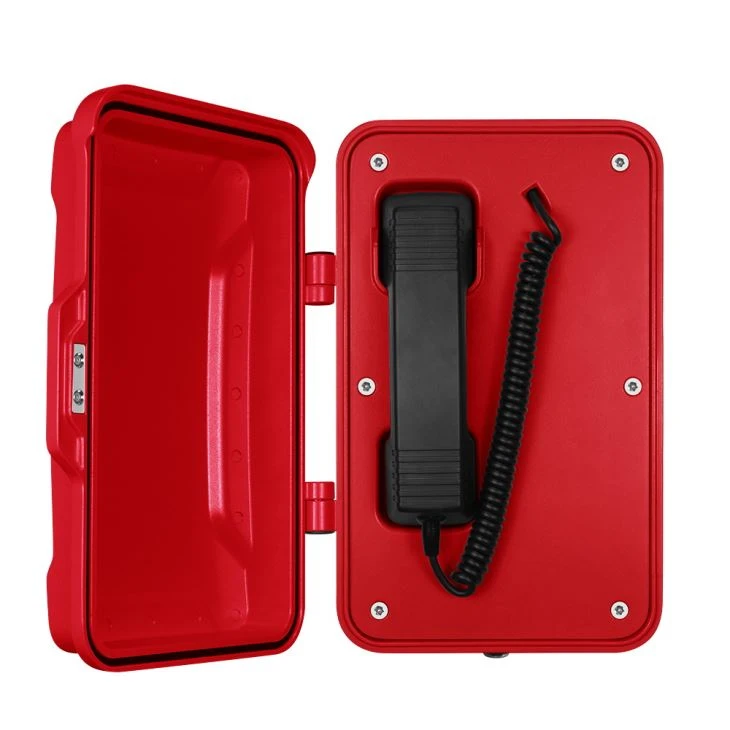

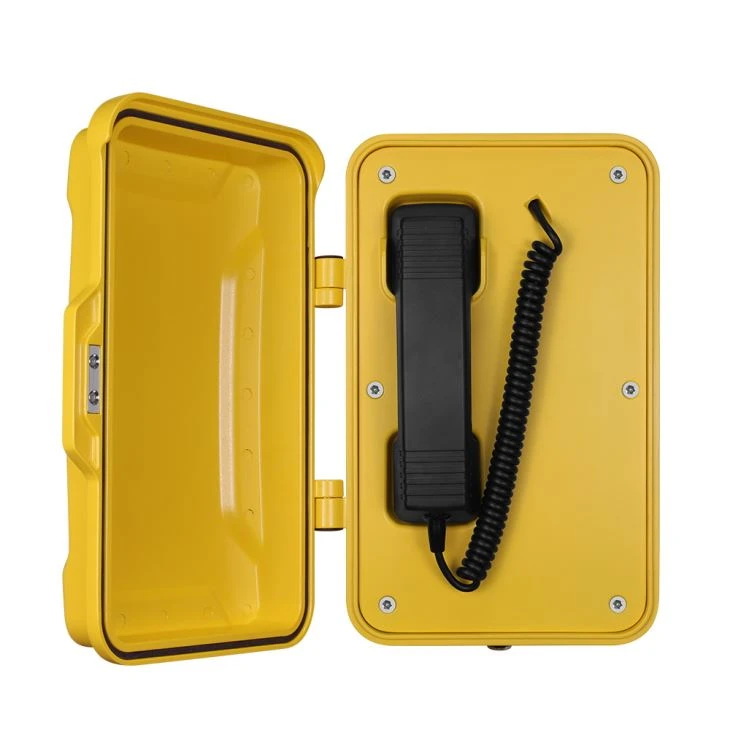

Auto-dial Anti-water GSM/3G telephone JR101-CB

Model Number: JR101-CB As a Auto-dial Anti-water GSM/3G telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. Ideal for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.

  Model Number: JR101-CB

As a Auto-dial Anti-water GSM/3G telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


The Quad-band 3G module covers wireless ranges across most of the globe.

3G connection offers wireless communications to provide a completely standalone telephone installation. The 3G phone greatly reduces installations costs by eliminating running wires.


  APPLICATIONS

This Auto-dial Anti-water telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.


  MIAN FEATURES of Auto-dial Anti-water telephone

  • Standard GSM/3G phone

  • Aluminum alloy die-casting body

  • Vandal resistant handset and armored cord

  • Weather proof protection to IP67

  • Programmable for auto-dial

  • Fast-fit terminal connection

  • Can be programmed remotely by tone phone

  • Wall/ Pillar mounting, Tamper resistant fixings,simple installation

  • Inductive coupler fitted as standard for hard of hearing

  • External Antenna with long cable

  • Supplied with 12V DC Power Supply

  • CE, FCC, RoHS, ISO9001 compliant


OPTIONAL

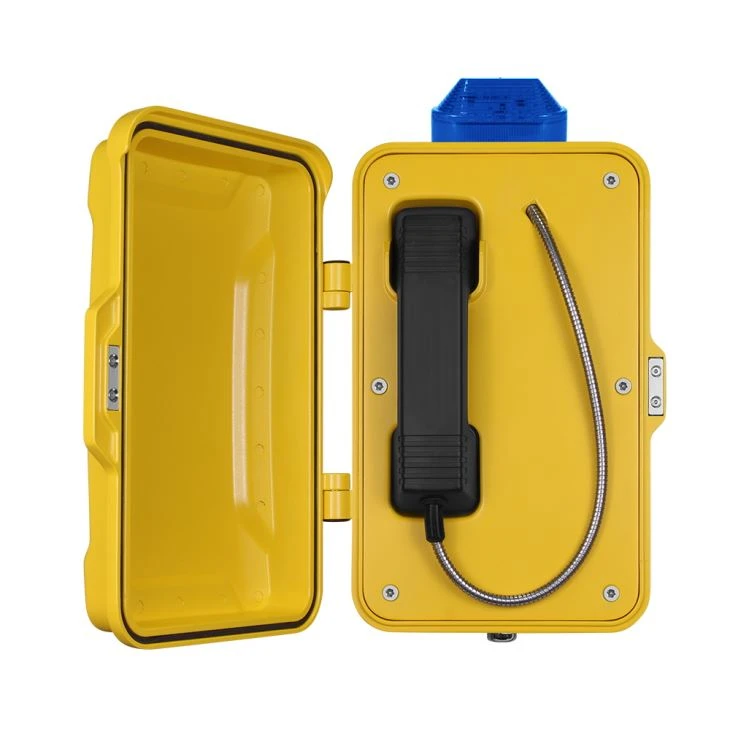

- Add Horn & Lamp on the top

- Key lockable latch

- Upper & lower internal mounting plates

- Flat label area or custom embossed logo on door

- Vandal resistant screws for upper mounting plate

Highway Telephones.png

  TECHNICAL SPECIFICATIONS of Auto-dial Anti-water telephone

3G Version

Power Supply

12V DC

Power Consumption

-Idle:0.3W
-Active: 1.5W

Communication Type

Full duplex

Ringer volume

90~95dB(A)  at a distance of 1 m

Program Method

Remote programming by SMS

Frequency

 A version

- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

E version

- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

J version

- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz


Ambient conditions

Protection type

IP 66 as per EN60529

Operating temperature

-40°C to +70°C

Storage temperature

-45°C to +85°C

  CERTIFICATIONS


  PACKAGE of Auto-dial Anti-water telephone
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: pearl cotton, carton
Net weight: 6 KG
Gross weight: 7 KG
