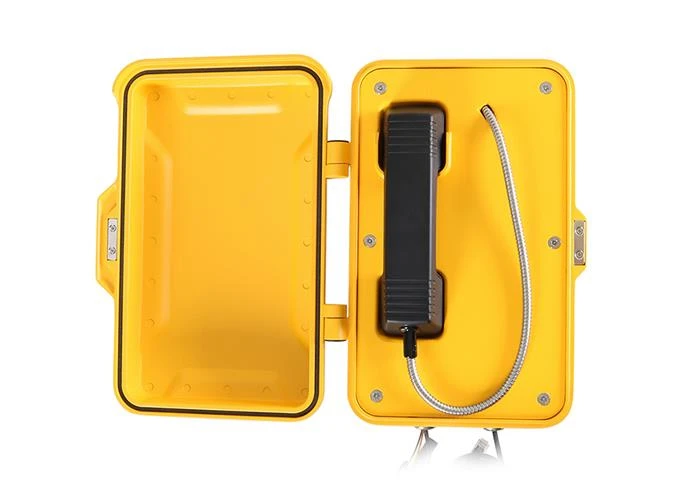

IP66-IP67 Waterproof Hotline Emergency JR101-CB-GSM

Color:Yellow or Customized
Version:Analog/ SIP/ GSM/ 3G
Mounting:Wall /Pillar Mounted
Net Weight: 6kg
Certificate:CE, FCC, RoHs, ISO9001
Package:Pearl Cotton, Carton

  Model Number: JR101-CB-GSM

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.

The JR100 series Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.


This Auto-dial Anti-water telephone is ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant, Chemical plant, Power plant indoor: Airport, transtation, bank, koisk, elevator, university, hotel, hospital, plant, oil and gas, outdoor station, bridge, mine, army and related industrial application, etc.


  MIAN FEATURES of IP66-IP67 Waterproof Hotline Emergency

  • Standard Analogue phone or SIP/GSM/3G phone

  • Aluminum alloy die-casting body

  • Vandal resistant handset and cord

  • Weather proof protection to IP67

  • Programmable for auto-dial

  • Wall mounting, simple installation

  • Inductive coupler fitted as standard for hard of hearing

  • Phone line powered(analogue)

  • External power supply or PoE (SIP)

  • RJ45 Port for SIP connection

  • CE,FCC,ROSH compliant


- Add Horn & Lamp on the top

- Key lockable latch

- Upper & lower internal mounting plates

- Flat label area or custom embossed logo on door

- Vandal resistant screws for upper mounting plate

Highway Telephones.png

  TECHNICAL SPECIFICATIONS of IP66-IP67 Waterproof Hotline Emergency

Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version

Power Supply

PoE or 12V DC

Power Consumption



SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

- 90~95dB(A) at a distance of 1 m

- 110dB(A) at a distance of 1 m (for external horn speaker)

3G Version

Power Supply

12V DC

Power Consumption


-Active: 1.5W

Communication Type

Full duplex

Ringer volume

90~95dB(A) at a distance of 1 m

Program Method

Remote programming by SMS


A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Ambient conditions

Protection type

IP 66 as per EN60529

Operating temperature

-25°C to +70°C

Storage temperature

-25°C to +85°C



  PACKAGE of IP66-IP67 Waterproof Hotline Emergency
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: pearl cotton, carton
Net weight: 6 KG
Gross weight: 7 KG
