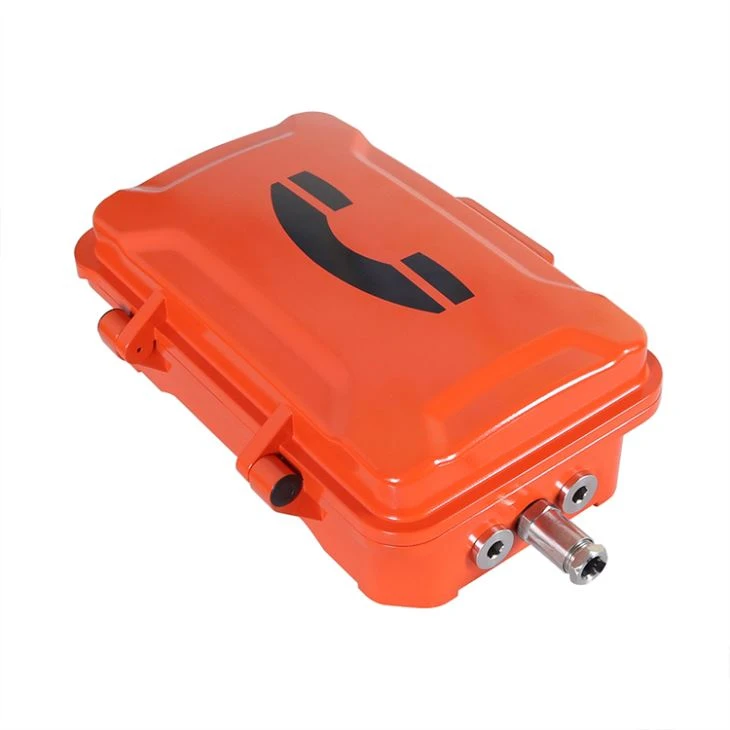

Intrinsically Safe Telephone For Zone 1& Zone 2 Hazardous Areas JREX101

Model No.: JREX101
Color:Orange, or Customized
Dimension:339*246*126(mm)
MOQ:1 set
Weight:8 KG
Payment:T/T, Paypal,L/C
Package:Pearl Cotton, Carton
Certificate:ATEX,FCC,CE,RoHS,ISO9001


Explosionproof telephones.jpg

Do you need an explosion proof telephone or not? It is important to realise that not all oil & gas locations actually need explosion proof telephones. This depend on if there are some explosive gases, vapor or other hazardous elements in your area. It is worthwhile to consider this before you purchase an explosion proof system because intrinsically safe telephones will be more expensive than "regular" industrial telephones



   Model No.:  JREX101

This Intrinsically Safe Explosion Proof Telephone is protected in a corrosion resistant aluminum alloy die casting housing, provides the phone from the ingress of dust, dirt and fibers as well as resistance against the harmful and corrosive effects of water spray, sleet, snow and rain.



This Intrinsically Safe explosion proof telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

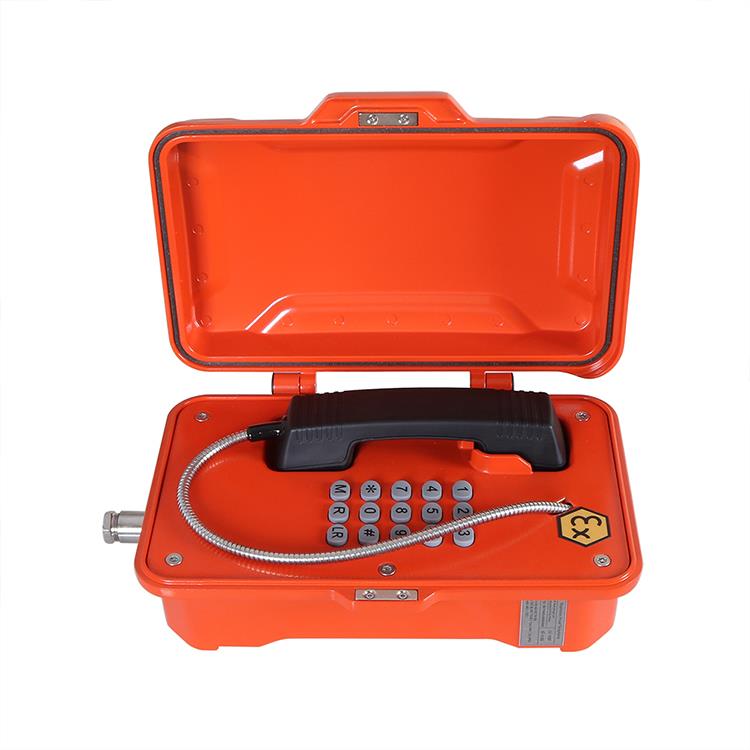

ATEX telephone  (1).jpg

ATEX certified telephone (14).jpg

   Main Features of Intrinsically Safe Telephone for Zone 1& Zone 2 Hazardous Areas

- Standard Analog , or SIP/ VoIP Telephone

- Power supply: Power over Ethernet (PoE) for SIP phone

                          Phone line powered for Analog phone

- (SIP phone) Compatible with standard SIP protocol, independently accessible to VOIP phone system. (Asterisk, Elastix, Grandstream, Cisco, Yeastar etc. mainstream IP-PBX)

- (Analog phone ) Can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.


- Corrosion resistant aluminum alloy die casting housing (The telephone enclosure provides protection from the ingress of dust, dirt and fibers as well as resistance against the harmful and corrosive effects of water spray, sleet, snow and rain.)
- With NPT conduit entries and Type 3 / IP67 environmental ratings

- Certificated for Dust & Gas

- Zone classification: (For explosive gas atmospheres Zone 1 and Zone 2. For IIA, IIB explosive atmosphere. For dust Zone 20, Zone 21 and Zone 22.)


- Suitable for temperature class:T1 ~ T6.

- Impact of protection: IK10 according to EN50102

- The main keypad features 15 buttons (0-9,*,#, Redial, Mute, Last Number Redial) (Completely programmable weatherproof keypad designed to be used with gloves)


- Handset with Noise canceling microphone, for effective communication from noisy areas (Armored SS cord stands up to rough treatment, optional for black curly cord )

- Hermetically sealed non-contact hook sensing switch improves system reliability

- Ringing sound pressure level Approx. 90 dB(A) at 1m distance

- Mounting: Wall/column/structural

- ATEX, CE, FCC, ISO9001, RoHS compliant



   APPLICATIONS of Intrinsically Safe Telephone for Zone 1& Zone 2 Hazardous Areas

This easy-to-use explosion proof telephone can be used in a variety of hazardous and demanding environments.

For communication in areas which may be hazardous due to the presence of flammable gases or vapors, and/or combustile dusts. In chemical and petrochemical plants, oil refineries, mines, offshore, power generation facilities, bulk loading stations, paint and vamish manufacturing plants, grain processing and similar industries. as well as mechanical wear and tear. Telephone is ideal for security and industrial applications, as well as emergency help.





  TECHNICAL SPECIFICATION of Intrinsically Safe Telephone for Zone 1& Zone 2 Hazardous Areas

   Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

- 80dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.

  SIP Version

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

- 90~95dB(A)  at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)


  Ambient conditions

Protection type

IP 66 as per EN60529

Operating temperature

-40°C to +70°C

Storage temperature

-45°C to +85°C

Explosion proof phone..jpg

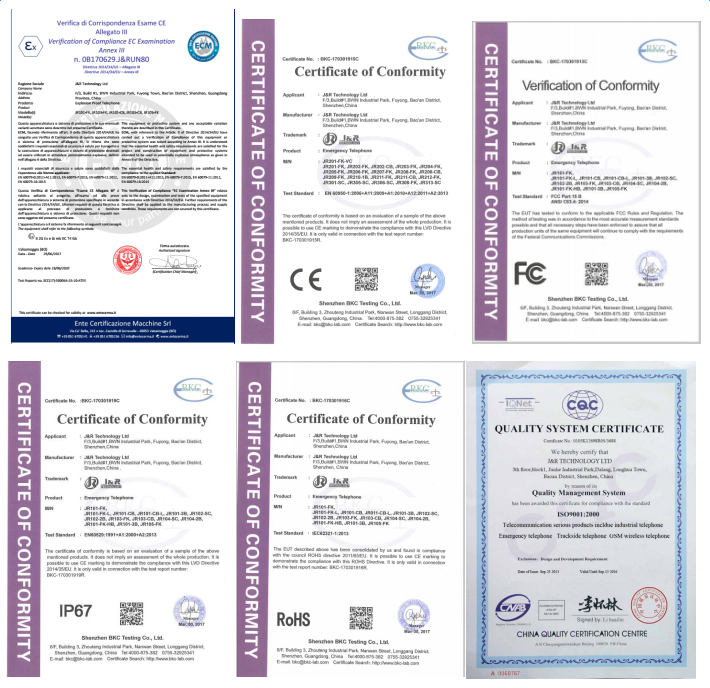

  CERTIFICATIONS of Intrinsically Safe Telephone for Zone 1& Zone 2 Hazardous Areas




   PACKAGE of Intrinsically Safe Telephone for Zone 1& Zone 2 Hazardous Areas

Unit Size:  204*334*109 mm (H*W*D)

Carton Dimension: 200*300*440 mm (H*W*D)

Packaging materials: pearl cotton, carton

Net Weight: 8 KG

Gross weight: 9 KG
