Emergency Telephone For Roadside,Subway JR330-SC-Analogue

Material:Cold Rolled steel
Version:Analogue,SIP,GSM,3G
Certificate:CE,FCC,ROSH,ISO9001
Warranty:2 Years standard, Longer for customzied
Application:beach,park lots,police stations,outside building
Weather Resistance:IP65
Temperature:Operating: -30°C to +65°C
Installation:Wall mounting
Communication Type:Full duplex
Ringer volume:90~95dB(A) at a distance of 1 m

Product Description

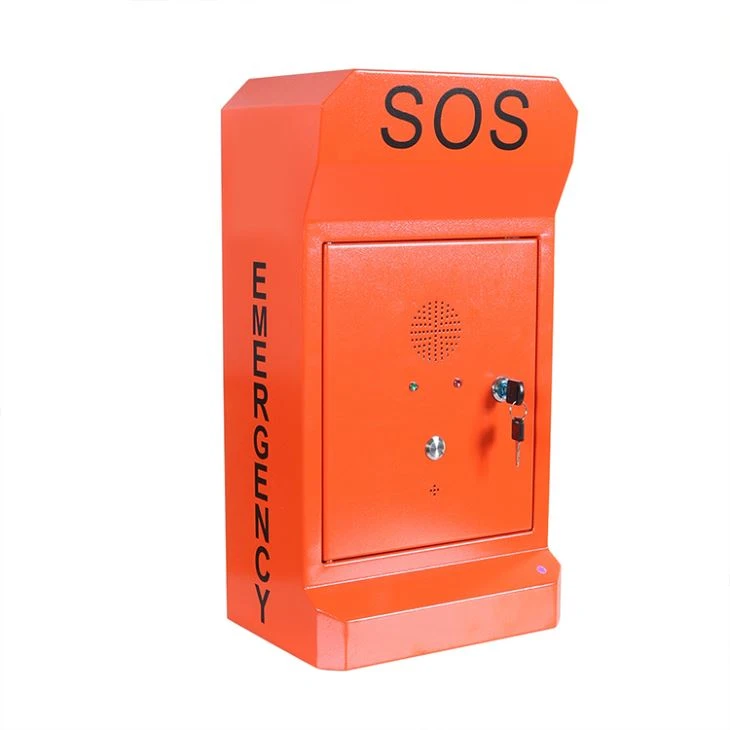

Emergency Telephone for Roadside,Subway JR330-SC-Analogue

The Hands Free Telephone is designed to meet the needs of client who experience loss through vandalism. Ideal for Highway,parking lots, Roadside, railway/metro platforms, hospitals, police stations,  outside building etc.

Housed in cold rolled steel box and  manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad or Button is weather and vandal resistant.






Standard Analogue

As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.



Features

Emergency Telephone for Roadside,Subway JR330-SC-Analogue



Standard VoIP/SIP telephone

Robust housing, constructed of cold rolled steel

Vandal resistant metal button

Hands free operation

Surface & Pillar mounting, simple installation

Weather proof protection: up to IP65

One button for emergency call

External power supply or PoE (SIP)

RJ45 Port for SIP connection

CE, FCC,RoSH compliant



SIP-VoIP TECHNICAL SPECIFICATIONS

Emergency Telephone for Roadside,Subway JR330-SC-Analogue

Power Input:12-24V DC

Port:WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX  LAN: 10/100Base- T RJ-45 for PC, Auto MDIX

Power Consumption: Idle:1.5W/ Active:1.8W



Voice Features

Emergency Telephone for Roadside,Subway JR330-SC-Analogue



Support SIP 2.0 (RFC3261)

Codec: G.711A/u, G.7231 high/low, G.729, G.722

Echo cancellation: Support G.168 and hand-free can support 96ms

Supports full duplex

SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server

DTMF:SIP info, DTMF Relay,RFC2833

Call control features: Flexible dial map, support hot-line



Network Features

Emergency Telephone for Roadside,Subway JR330-SC-Analogue

WAN/LAN: support Bridge mode

Support static IP address

Support DHCP get IP on WAN port

Support VLAN

Support web config



TECHNICAL SPECIFICATIONS

Emergency Telephone for Roadside,Subway JR330-SC-Analogue

Casing Material:Cold rolled steel body

Colors:RED, YELLOW, GREY

Handset Material:No handset

Keypad:No keypad

Temperature:Operating: -30°C to +70°C  Storing: -40°C to +75°C

Weather Resistance:IP65

Ringing Tone:Shrill warble tone 85 dBA @ 1 metre typical

Hook switch:Electronic / magnetic with no visible moving parts

M.T.B.F.:Calculated to have an M.T.B.F. in excess of 50,000 hours using

Weight:Up to 1 kg depending on option



Our company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last,

in environments where regular products wouldn’t.(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version) ,

After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and

cooperate with you for all of our product range in your market. We could offer you all of our product range with ODM&OEM solution to meet

your demands and requirement well. and we will support you with the best product solution and costeffective solution to support you with

the project requirement and marketing proposal. We appreciate your business and we look forward to assisting you.

Thanks again for your support and understanidng.

IP telephone (2)



Factory Line and Samples Room

J&R Weatherproof telephones (4)

Samples Room.jpg

Certifications




Package



IMG_0233.JPG4



FAQ

1.Q: what's your products' quality control?
   a.Quality supply chain management makes sure product quality and the maximum limit of the control of raw material cost and delivery time well according to customer needs.

   b.Rigorous testing links and advanced test equipment guarantee our high quality.


2.Q: What's your after-sale service?
   A: 2 Years standard Warranty, Longer for customized.


3.Q: What's your MOQ?
   A: Our MOQ is 1 pcs.


4.Q: Could you offer the OEM/ODE service?
   A: Yes, we can provide the OEM/ODM service


5.Q: What are your advantages?
   A:Core leadership has more than a decade of experience in the industry. it has been successfully in operate for hundreds of projects.

6.Q: How do you deliver the goods?
   A: We deliver the goods by Fedex,DHL,TNT,UPS and other methods.
