Emergency Telephone For Railway Metro JR101-3B-SIP

Color:Yellow or Customized
Weight:6kg
Material:Aluminum alloy
Certificate:CE, FCC, RoHs, ISO9001
Function:SOS
Feature:Weatherproof
Size:204*334*109(mm)
Modle:Analog/ SIP/ GSM/ 3G
Mounting:Wall /Pillar Mounted

Product Description

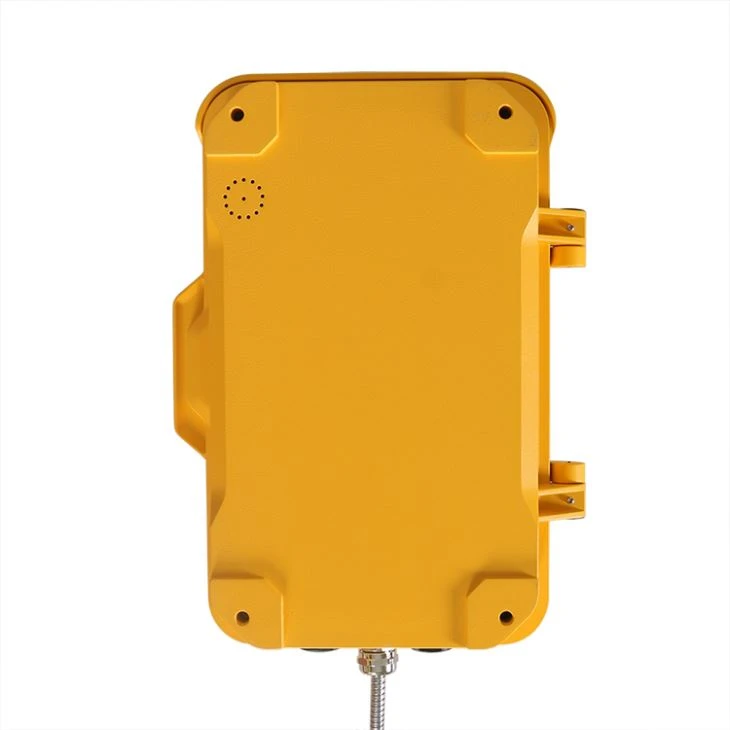

Emergency Telephone for Railway Metro JR101-3B-SIP
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.

PECIFICATION

Emergency Telephone for Railway Metro JR101-3B-SIP

Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC
Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex
Ringer volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply
12V DC
Power Consumption
-Idle:0.3W
-Active: 1.5W
Communication Type
Full duplex
Ringer volume
90~95dB(A) at a distance of 1 m
Program Method
Remote programming by SMS
Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type
IP 66 as per EN60529
Operating temperature
-25°C to +70°C
Storage temperature
-25°C to +85°C
Application

Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.

Feature

Emergency Telephone for Railway Metro JR101-3B-SIP

Standard Analogue phone/IP/SIP Phone
Vandal resistant handset and cord
Weather proof protection to IP67
Programmable for auto-dial
Wall mounting, simple installation
Inductive coupler fitted as standard for hard of hearing
Phone line powered(Analogue)
External power supply or PoE (SIP-VoIP)
RJ45 Port for SIP connection
CE,FCC Rosh compliant


Packing & Delivery

Emergency Telephone for Railway Metro JR101-3B-SIP

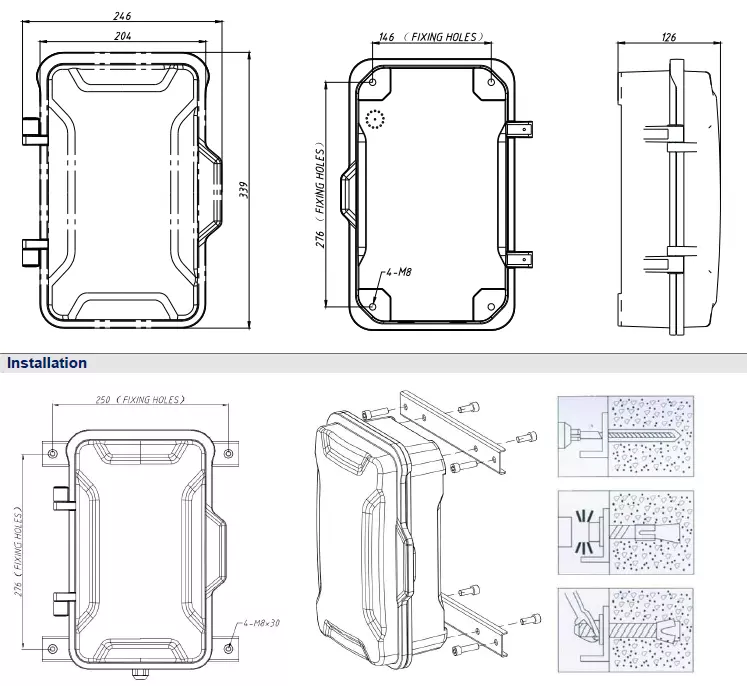

Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6KG
Gross weight: 7KG

Certifications
Our Company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
